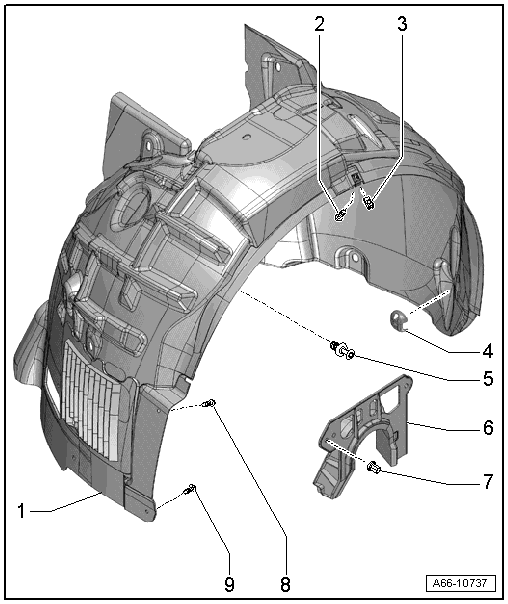

Overview - Front Wheel Housing Liner, AUDI RS5
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Front Wheel Housing Liner
- Removing and installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, AUDI RS5 .
- Bolt
- 1.5 Nm
- Bracket
- For the wheel housing liner to the fender
- Retaining Clip
- Quantity: 7
- Mount
- Left expanding clip
- Right wing nut
- Driveshaft Cover
- Nut
- 2 Nm
- Quantity: 2
- Bolt
- 2.5 Nm
- Bolt
- 1.5 Nm
- Quantity: 5
