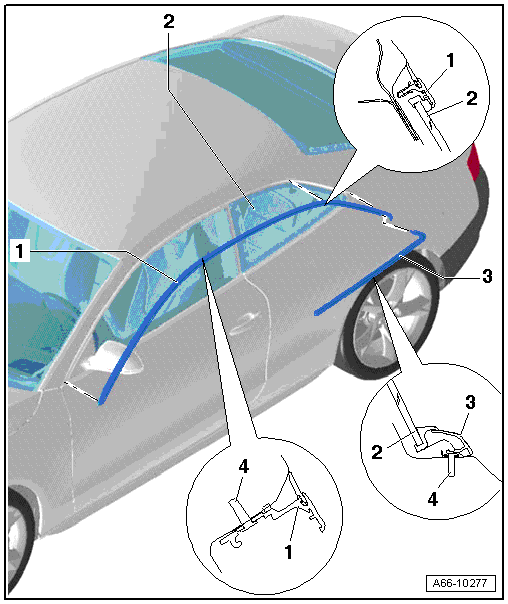

Overview - Roof Trim Molding
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To remove roof trim molding, it is not necessary to remove the side window.
- Roof Trim MoldingNOTE:
Roof trim molding must not be twisted or bent.
-- Remove the door seal from the body flange in the >>A-pillar<< and roof trim molding area.
-- Drill off rivet heads of pop rivets, strike rivet shafts through and remove roof trim molding.
-- Carefully pry the roof trim molding out of clips over the side window and remove it.
- Side Window
- Trim Strip
-- To remove the >>B-pillar<< , pry it out of the clips on the roof beginning at the side.
-- Pry out the side trim strip on the side panel out of the clips.
-- Slide the trim molding down out of the roof trim molding.
- Blind Rivet
- Quantity: 9 on the roof trim molding.
