Overview - Headrest Cover And Cushion
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

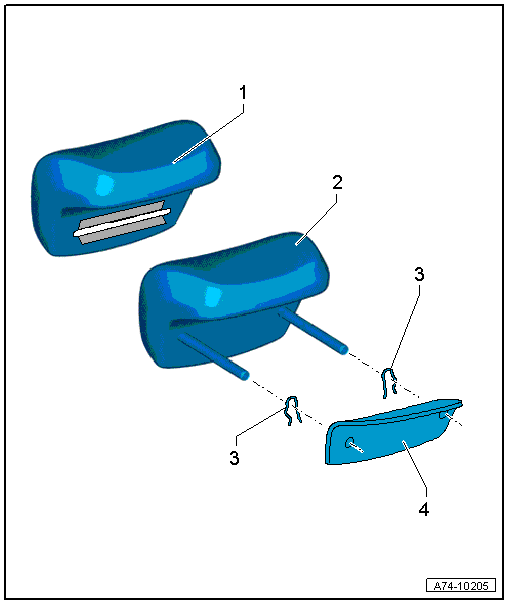

A Leather Headrest Is Shown In The Illustration. Because Headrests With A Fabric Cover Are Not Disassembled, That Version Is Not Shown In The Assembly Overview.
- Cover
- Equipment Level: Leather Cover
- Removing And Installing. Refer To HEADREST COVER AND CUSHION, REMOVING AND INSTALLING .CAUTION:
It Is Only Possible To Replace The Cover On The Headrest With A Leather Cover. It Is Not Possible To Replace A Fabric Headrest Cover Because The Cover Is Filled With Foam And Also Serves As The Casing For The Padding.
- Carrier Piece
- With Padding
- Equipment Level: Leather Cover
- The Headrest Support Is In The Padding And Cannot Be Separated
- Leg Spring
- Removing and installing. Refer To HEADREST LEG SPRING, REMOVING AND INSTALLING .
- Trim
- Removing and installing. Refer To HEADREST TRIM, REMOVING AND INSTALLING .
