Overview - Cover And Cushion, Rear Seat Backrest With A Pass-Through

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Illustration Only Shows The Structure Of The Right 2/3 Section Of The Backrest. The Structure Of The Left 1/3 Section Of The Backrest Is Similar.

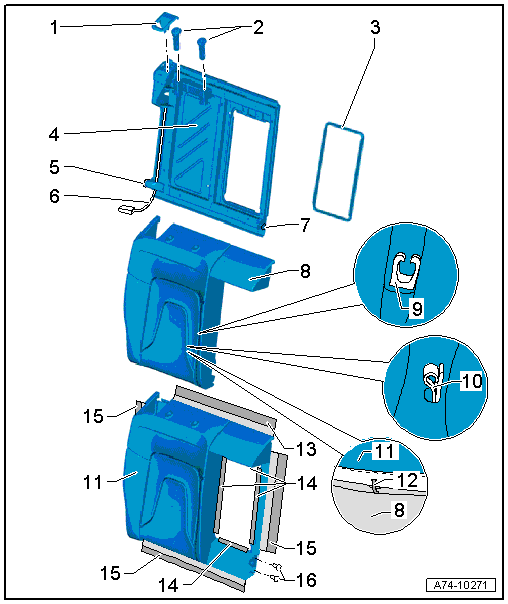

Fig 1: Exploded View Of Cover And Cushion, Rear Seat Backrest With A Pass-Through

Courtesy of AUDI OF AMERICA, LLC

Trim
- For locking
- Lock Cylinder without Trim, Removing and Installing. Refer To LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, LOCKING MECHANISM WITHOUT LOCK CYLINDER .
- Lock Cylinder with Trim, Removing and Installing. Refer To LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, LOCKING MECHANISM WITH LOCK CYLINDER .
Headrest Guide
- Removing and installing. Refer To HEADREST GUIDE, REMOVING AND INSTALLING .
Cover Frame
- Only With The Right 2/3 Section Of The Backrest With Pass-Through
- Removing and installing. Refer To COVER FRAME, REMOVING AND INSTALLING .
Backrest Shell
Outer Bracket
Release Cable
- Lock - Connector Station
Inner Bracket
Cushion
- Removing and installing. Refer To COVER AND PADDING, REMOVING AND INSTALLING, REAR SEAT BACKREST WITH PASS-THROUGH .
- Separate the cover from the padding. Refer To COVER AND PADDING, SEPARATING, REAR SEAT BACKREST WITH PASS-THROUGH
Clip
- Covered In Foam Padding
Clip
- Covered In Foam Padding
- Only With Fabric Covers
Cover
- Removing and installing. Refer To COVER AND PADDING, REMOVING AND INSTALLING, REAR SEAT BACKREST WITH PASS-THROUGH .
- Separate the cover from the padding. Refer To COVER AND PADDING, SEPARATING, REAR SEAT BACKREST WITH PASS-THROUGH
Cushion Clip
- Only With Leather Covers
- For Securing The Cover To The Padding
- Always Replace If Removed
- Install In Same Location As Before Removal
Retaining Channel
- Sewn Into Cover
- For Engaging The Cover In The Backrest Shell
Molding
- Only With The Right 2/3 Section Of The Backrest With Pass-Through
- Sewn Into Cover
- For Engaging The Cover In The Pass-Through Opening
Molding
- Sewn into cover
- For Engaging The Cover In The Backrest Shell
Plugs
- For Securing The Cover
- Quantity: 2
