Seat Pan Cover And Cushion, Removing And Installing, Bucket Seat: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove The Seat Pan. Refer To SEAT PAN, REMOVING AND INSTALLING .

-- Detach Velcro fastener -2-.

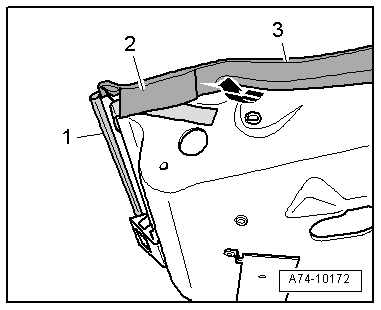

Fig 1: Removing Bucket Seat Cover

Courtesy of AUDI OF AMERICA, LLC

-- Pry the retaining strip at the edge of seat cover -3- out from around the guide on the seat pan.

-- Detach rear retaining strip -1- at the seat pan.

-- Detach retaining strip -1- from the brackets -arrow- at the seat pan cushion and detach Velcro fastener -3- at seat pan cushion -2-.

Fig 2: Detaching Retaining Strip -1- From Holders -Arrow- At Seat Pan Cushion

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat pan cover.

-- Remove seat bolster inflation adjuster -2- from retaining bracket -3- of the seat pan -arrow-.

Fig 3: Disengaging Flap With Air Cushion For Seat Bolster Inflation Adjustment

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect pneumatic hose -1- for seat bolster inflation adjustment at the Y-connector.

-- Remove the seat pan cushion with the seat bolster inflation adjuster.
