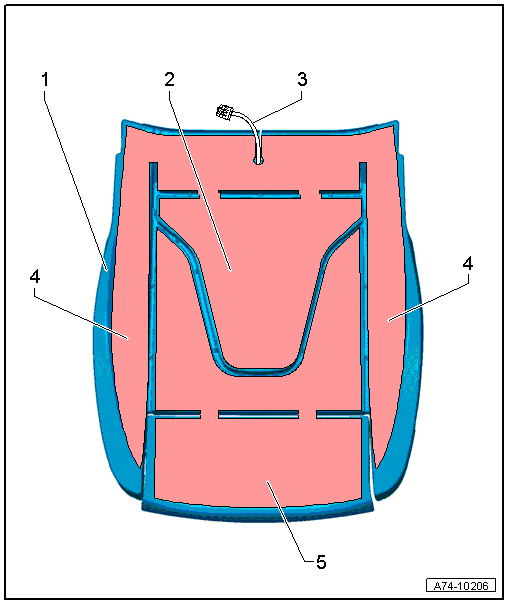

Overview - Seat Heating Element, Sport Seat
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Cushion
- For The Lower Seat Frame
- Seat Heating Element
- Bonded With Padding
- Removing and installing. Refer To DRIVER/FRONT PASSENGER SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, SPORT SEAT .
- Line
- Connected To The Seat Heating Element
- Bolster Heating Element
- Connected To The Seat Heating Element
- Seat Depth Adjuster Heating Element
- Connected To The Seat Heating Element
