Overview - Seat Heating Element, Comfort Seat

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

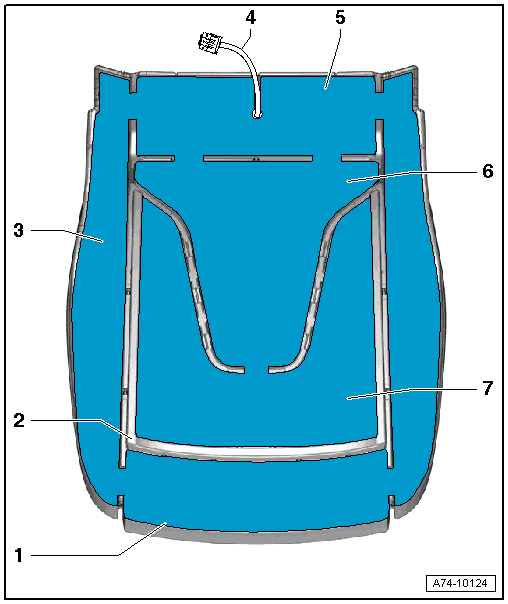

Fig 1: Identifying Seat Heating Element Overview, Comfort Seat

Courtesy of AUDI OF AMERICA, LLC

Front Seat Heating Element
- Connected To The Bolster Heating Elements
- Removing and installing. Refer To SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, COMFORT SEAT .
Cushion
- For The Lower Seat Frame
Bolster Heating Element
- Connected To The Front And Rear Seat Heating Elements
- Removing and installing. Refer To SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, COMFORT SEAT .
Line
- Connected Securely To The Seat Heating Element
Rear Seat Heating Element
- Connected To The Bolster Heating Elements
- Removing and installing. Refer To SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, COMFORT SEAT .
Center Rear Seat Heating Element
- Connected To The Rear Seat Heating Element
- Only Bonded At The Edges With The Spacer Fabric
- Removing and installing. Refer To SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, COMFORT SEAT .
Center Front Seat Heating Element
- Connected To The Center Rear Seat Heating Element
- Only Bonded At The Edges With The Spacer Fabric
- Removing and installing. Refer To SEAT HEATING ELEMENT -Z6- / -Z8-, REMOVING AND INSTALLING, COMFORT SEAT .
