Overview - Backrest Cover And Cushion, Super Sport Seat

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

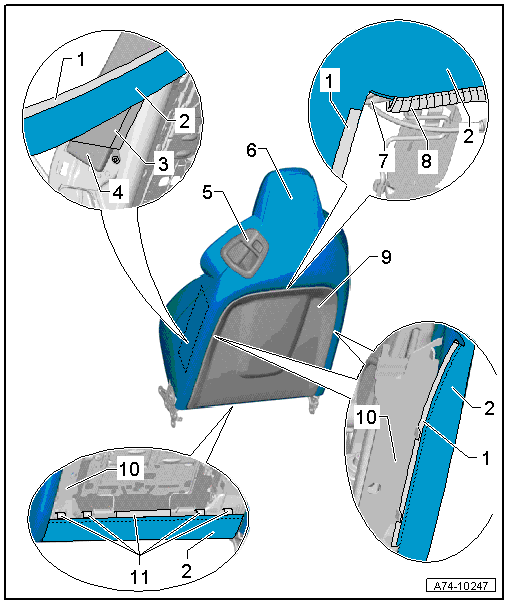

Fig 1: Backrest Cover And Padding Overview, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Clamping Strip
- Sewn Into Cover
- To Engage The Cover In The Backrest Frame Side Trim
Cover
- Separate the cover from the padding. Refer To BACKREST COVER AND CUSHION, SEPARATING, SUPER SPORT SEAT
Pocket
- For Side Airbag
- Sewn Into Cover
Side Airbag
- Removing and installing. Refer To FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Entry Assistance Trim
- Entry Assistance Trim, Removing and Installing. Refer To ENTRY ASSISTANCE TRIM, REMOVING AND INSTALLING, POWER STANDARD SEAT
Cover
- With Padding
- Removing and installing. Refer To BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT .
- Cover, Separating From Padding And Connecting. Refer To BACKREST COVER AND CUSHION, SEPARATING, SUPER SPORT SEAT .
Backrest Frame
Retaining Channel
- Sewn Into Cover
- For Engaging The Cover In The Top Of The Backrest Frame
Backrest Cover
- Version Without Or With Storage Net
- Removing And Installing. Refer To BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .
- The Storage Net Can Only Be Replaced With The Backrest Cover
Backrest Frame Trim
- Clipped to the backrest frame
Retaining Channel
- Sewn Into Cover
- To Engage The Cover In The Backrest Frame Lower Trim
