Backrest Cover And Cushion, Separating, Super Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cover padding from the backrest. Refer To BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT .

-- Remove the cover -1- from the padding -3- as far as possible.

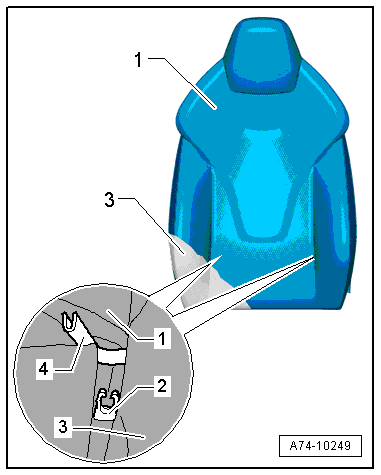

Fig 1: Backrest Cover And Padding, Super Sport Seat, Separating And Connecting

Courtesy of AUDI OF AMERICA, LLC

-- Unclip retaining channel -4- from clips -2-.

Versions With Fabric Covers:

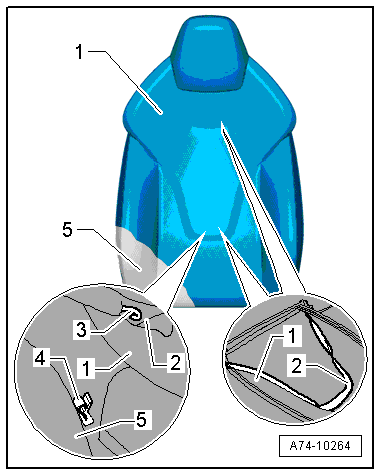

Fig 2: Identifying Contour Wire

Courtesy of AUDI OF AMERICA, LLC

-- Remove contour wire -3- that is inserted into pocket -2- in cover -1- from clips -4-.

-- Remove cover from the cushion -5-.

Versions With Leather Covers:

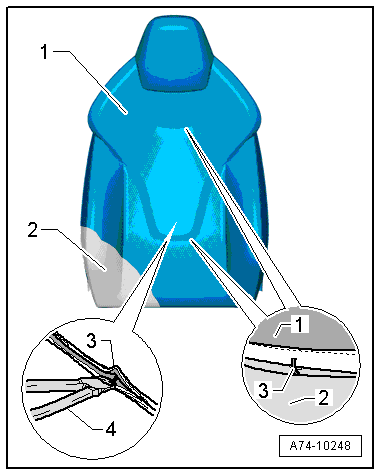

Fig 3: Identifying Cushion Cover

Courtesy of AUDI OF AMERICA, LLC

-- Cut through the upholstery clips -3- using pliers -4-.

-- Remove the cover -1- from the cushion -2-.
