Outer Tail Lamps, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

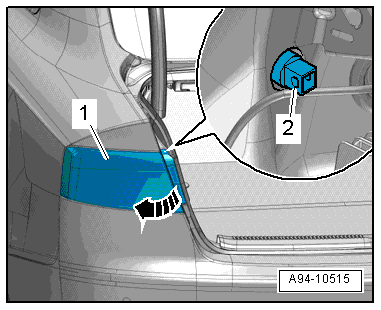

Fig 1: Identifying Outer Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Open the cover for the luggage compartment side trim panel.

-- Remove the threaded pins -2-.

-- Pivot the tail lamp -1- outward -arrow- and disengage the retaining pins from the body.

-- Disconnect the connector.
