Inner Tail Lamp, Removing And Installing, Led From My 2013: Installing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

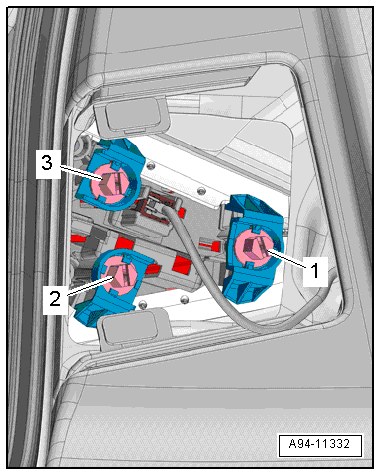

Fig 1: Identifying Clamping Brackets & Nuts

Courtesy of AUDI OF AMERICA, LLC

Install In Reverse Order Of Removal. Note The Following:

Tightening Specification. Refer to Figure.

NOTE:

Make Sure The Seal Between The Body And Tail Lamp Housing Seals Correctly.

-- Slide the clamping brackets -1, 4 and 5- onto the inner tail lamp threaded pins and turn the nuts -2, 3 and 6- 3 turns.

-- Position the inner tail lamp on the outer edge of the rear lid so that the clamping bracket audibly engages.

-- Tighten the nuts. Refer to Figure.

NOTE:

When Tightening The Nuts, The Clamping Bracket Wedges Itself Onto The Rear Lid -Arrows-.
