Inner Tail Lamp, Removing And Installing, AUDI A5, Led Through My 2012: Installing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Install In Reverse Order Of Removal.Note The Following:

Tightening Specification. Refer to OVERVIEW - REAR LID TAIL LAMPS, LED, .

NOTE:

Make Sure The Seal Between The Body And Tail Lamp Housing Seals Correctly.

-- Position The Inner Tail Lamp On The Outer Edge Of The Rear Lid.

-- Slide The Clamping Bracket -3- Onto The Inner Tail Lamp Threaded Pins And Install The Nut -4- Loosely.

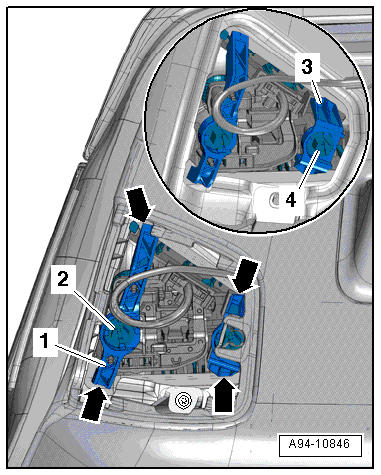

Fig 1: Sliding Clamping Bracket -3- Onto Inner Tail Lamp Threaded Pins & Install Nut -4- Loosely

Courtesy of AUDI OF AMERICA, LLC

-- Slide The Large Clamping Bracket -1- Onto The Threaded Pins On The Inner Tail Lamp And Tighten The Nuts -2- And -4-.

NOTE:

When Tightening The Nuts, The Clamping Bracket Wedges Itself Onto The Rear Lid -arrows-.
