OVERVIEW - REAR LID TAIL LAMPS, LED, From MY 2013: Notes
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

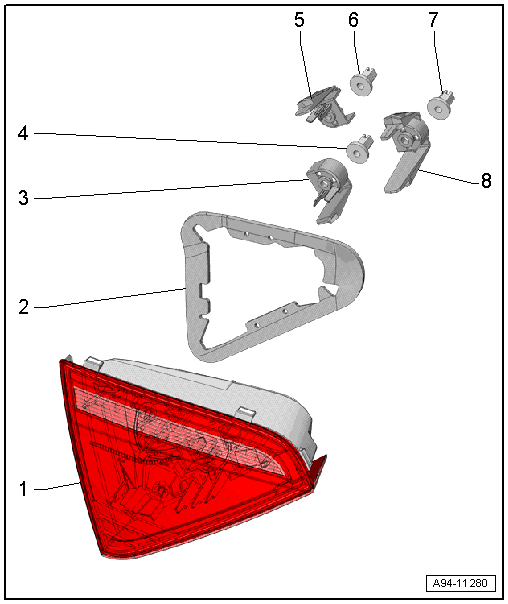

- Inner Tail Lamps
- Removing and installing. Refer to INNER TAIL LAMP, REMOVING AND INSTALLING, LED .
- Seal
- Replace if damaged.
- Lower Clamping Bracket
- For Securing Tail Lamp Assembly To The Rear Lid
- Nut
- Tightening Specification and sequence. Refer to Figure
- Upper Clamping Bracket
- For securing tail lamp assembly to the rear lid
- Nut
- Tightening Specification and sequence. Refer to Figure
- Nut
- Tightening Specification and sequence. Refer to Figure
- Large clamping bracket
- For securing tail lamp assembly to the rear lid
