Overview - Body Tail Lamps [XXXX]

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

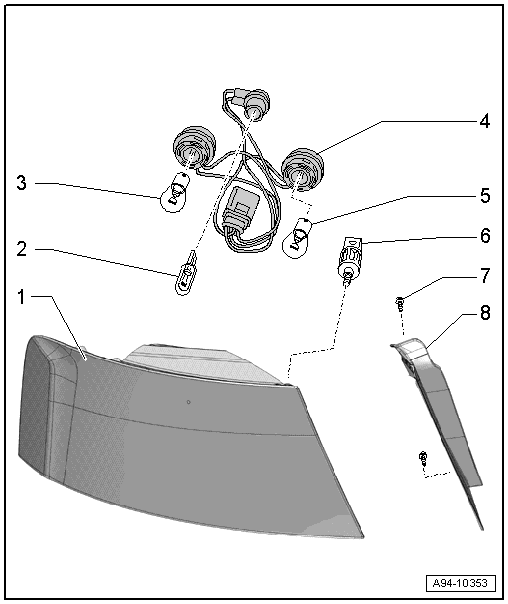

Fig 1: Exploded View Of Body Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

Outer Tail Lamps
- Removing and installing. Refer to OUTER TAIL LAMPS, REMOVING AND INSTALLING .
Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-
- Right Rear Turn Signal Bulb -M8-
- 12 V, 18 W
- W16W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING .
Brake and Tail Lamp Bulb
- Left Brake/Tail Lamp Bulb -M21-
- Right Brake/Tail Lamp Bulb -M22-
- 12 V, 21 W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING .
Bulb Socket
- For Bulbs
- Removing and installing. Refer to BULB SOCKET, REMOVING AND INSTALLING .
Brake and Tail Lamp Bulb 2
- Left Brake/Tail Lamp Bulb 2 -M58-
- Right Brake/Tail Lamp Bulb 2 -M59-
- 12 V, 21 W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING .
Threaded Studs
- 3.5 Nm
Screw
- 1.7 Nm
Cover
