OVERVIEW - BODY TAIL LAMPS, LED, Through MY 2011
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

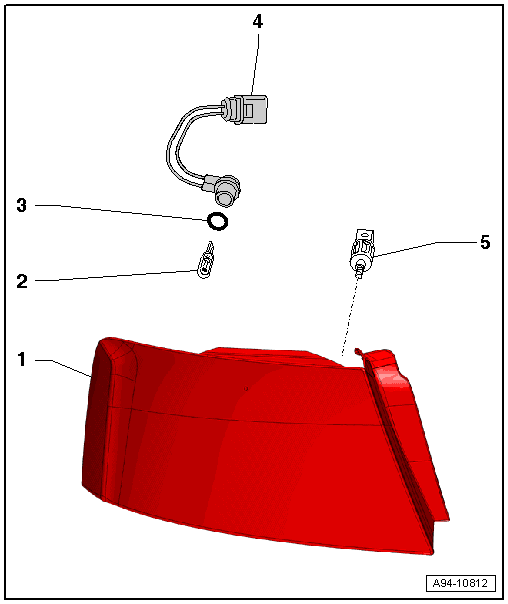

- Outer Tail Lamps
- Removing and installing. Refer to OUTER TAIL LAMP, REMOVING AND INSTALLING, LED .
- Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-
- Right Rear Turn Signal Bulb -M8-
- 12 V, 18 W
- W16W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING, LED .
- O-Ring
- Bulb Socket Central Connector
- Bulb socket, removing and installing. Refer to BULB SOCKET, REMOVING AND INSTALLING, LED
- Threaded Studs
- 3.5 Nm
