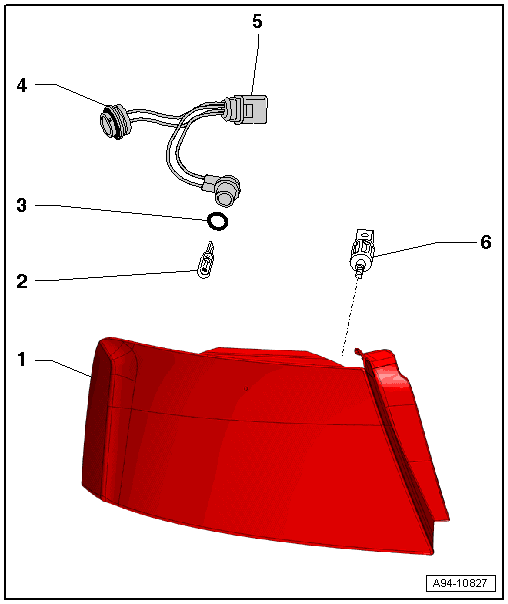

OVERVIEW - BODY TAIL LAMPS, LED Through MY 2012
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Outer Tail Lamps
- Removing and installing. Refer to OUTER TAIL LAMP, REMOVING AND INSTALLING, LED .
- Back-Up Lamp Bulb
- Left Back-Up Lamp Bulb -M16-
- Right Back-Up Lamp Bulb -M17-
- 12 V, 18 W
- W16W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING, LED .
- O-Ring
- Rear Side Marker Lamp Bulb
- Left Rear Side Marker Lamp Bulb -M37-
- Right Rear Side Marker Lamp Bulb -M38-
- integrated in the bulb socket Cannot be replaced separately if faulty.
- Bulb Socket Central Connector
- Bulb socket, removing and installing. Refer to BULB SOCKET, REMOVING AND INSTALLING, LED
- Threaded Studs
- 3.5 Nm
