Left/Right Back-Up Lamp Bulb -M16- / -M17-, Removing And Installing, Led From My 2013: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

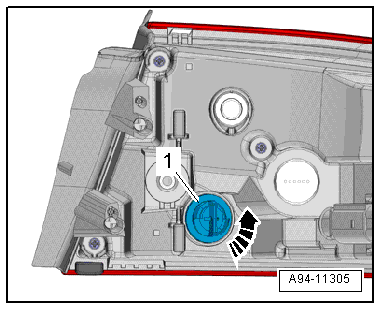

Fig 1: Turning Bulb Socket -1- Counter-Clockwise -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the outer tail lamp. Refer to OUTER TAIL LAMP, REMOVING AND INSTALLING, LED .

-- Turn the bulb socket -1- counterclockwise -arrow- and remove it from the tail lamp housing.

-- Remove the back-up lamp bulb from the bulb socket.
