Left/Right Back-Up Lamp Bulb -M16- / -M17-, Removing And Installing, AUDI RS 5, Led Through My 2012: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Trim Removal Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Pry off the cover -1- using the Trim Removal Wedge:3409 -arrow-.

-- Remove the nut -2- and remove the large clamping bracket -1-.

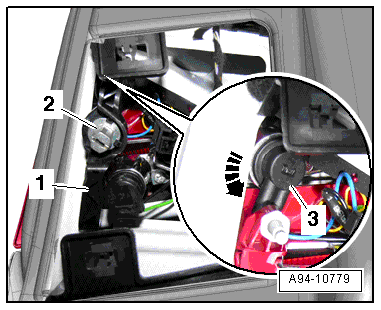

Fig 2: Removing Back-Up Lamp Bulb (Sedan Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Unlock the bulb socket -3- : on the left tail lamp assembly, turn counterclockwise -arrow- ; on the right tail lamp assembly, turn clockwise.

-- Pull the bulb socket out of the tail lamp housing.

-- Remove the back-up lamp bulb from the socket.
