LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, REMOVING AND INSTALLING, AUDI A5, LED Through MY 2012: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove the cover -1- in direction of -arrow-.

-- Remove the nut -2- and remove the large clamping bracket -1-.

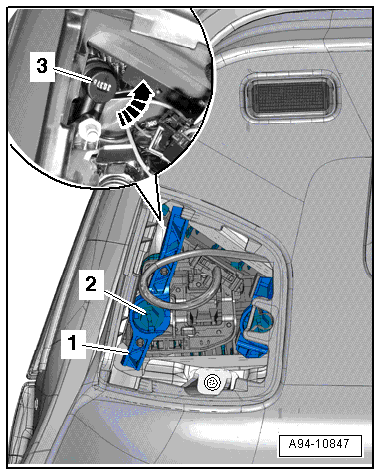

Fig 2: Unlocking Bulb Socket -3- With Needle Nose Pliers On Left Tail Lamp, Turn Counter-Clockwise -Arrow- ; On Right Tail Lamp, Turn Clockwise

Courtesy of AUDI OF AMERICA, LLC

-- Unlock the bulb socket -3- with needle nose pliers: on the left tail lamp assembly, turn counter-clockwise -arrow- ; on the right tail lamp assembly, turn clockwise.

-- Pull the bulb socket out of the tail lamp housing.

-- Remove the back-up lamp bulb from the socket.
