Rear Parking Aid Warning Buzzer -H15-, Removing And Installing, SPORTBACK: Removing
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

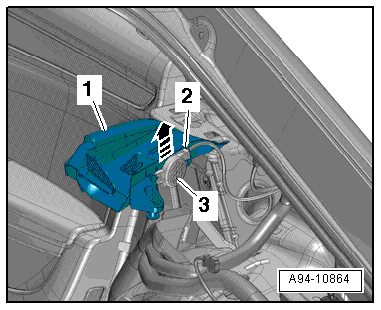

Fig 1: Removing Rear Parking Aid Warning Buzzer -3- On Right Seat Belt Guide -1- In -Direction Of Arrow-
-- Turn off the ignition and remove the key.
-- Remove the right rear seat belt guide. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
-- Remove the Rear Parking Aid Warning Buzzer -H15- -item 3- from the right seat belt guide -1- in direction of -arrow-.
-- Disconnect the connector -2-.
