High-Mounted Brake Lamp Bulb -M25-, Removing And Installing, SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Do Not Press The Brake Pedal.

CAUTION:

The upper rear lid trim only needs to be unclipped at the upper edge and bent away to remove the high-mount brake light.
To prevent the upper rear lid trim from breaking, it must not be colder than 20 °C (68 °F). Warm the trim slightly with a hot air gun if necessary. This applies especially to older vehicles.

-- Unclip The Upper Rear Lid Trim Panel At The Upper Clips And Bend Them Away. Refer To LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING / LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

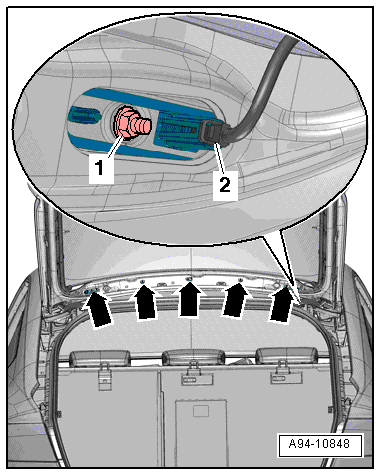

Fig 1: Identifying Nut -1- -Arrows- & Electrical Connector -2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Remove the nut -1- -arrows-.

-- Pry the retaining pin -4- on the outer side out of the clips -2- using the Trim Removal Wedge:3409 .

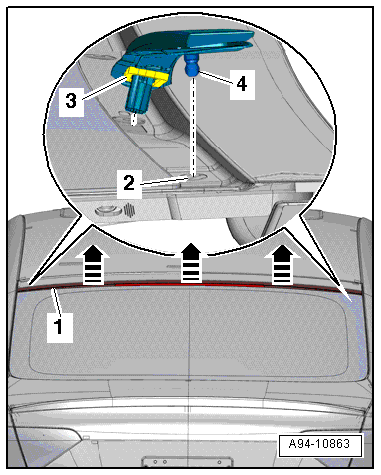

Fig 2: Loosening Self-Adhesive Seal -3- Near Stud Bolts & Remove High-Mounted Brake Lamp -1-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the self-adhesive seal -3- near the stud bolts and remove the high-mounted brake lamp -1- from the rear lid.

The self-adhesive seals will get damaged.

-- Remove the high-mounted brake lamp.
