Left/Right Low Beam Headlamp Bulb -M29- / -M31-, Removing And Installing, Halogen Headlamps, Through 10/2008: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Spring Clip -Arrow- And Gas Discharge Lamp Housing Cover -1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, Through MY 2012 .

-- Release spring clip -arrow- and remove low beam/daytime running light bulb housing cover -1- from headlamp housing.

-- Remove the bulb -2- from the spring clips.

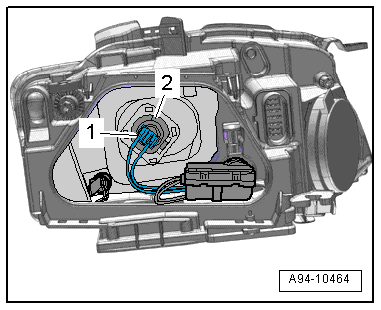

Fig 2: Identifying Electrical Connector -1- & Bulb -2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the bulb.
