Left/Right Low Beam Headlamp Bulb -M29- / -M31-, Removing And Installing, Halogen Headlamps, From 11/2008: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Spring Clip -Arrow- And Gas Discharge Lamp Housing Cover -1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, FROM 11/2008 .

-- Release spring clip -arrow- and remove low beam/daytime running light bulb housing cover -1- from headlamp housing.

-- Turn the socket -1- counterclockwise -arrow- and remove it from the housing.

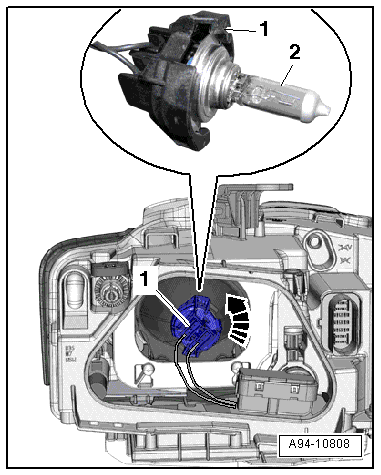

Fig 2: Turning Socket -1- Counterclockwise -Arrow- & Remove From Housing

Courtesy of AUDI OF AMERICA, LLC

-- Pull the bulb -2- out of the socket.
