Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing, Halogen Headlamps, Through 10/2008: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

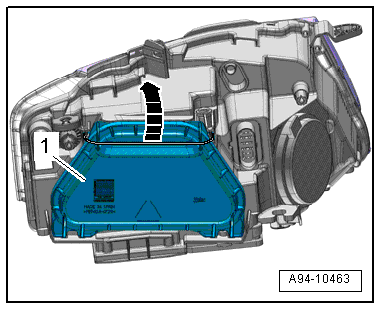

Fig 1: Identifying Spring Clip -Arrow- And Gas Discharge Lamp Housing Cover -1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, Through MY 2012 .

-- Release the wire clamp -arrow- and remove the low beam/daytime running lamp bulb housing cover -1- from the headlamp housing.

-- Remove the light bulb and socket -1- from the reflector -arrow-.

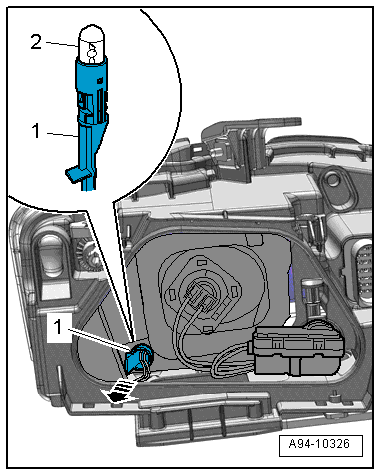

Fig 2: Identifying Light Bulb And Socket -1- From Reflector -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the parking lamp/front side marker lamp bulb -2- from the socket.
