Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Halogen Headlamps, Through 10/2008: Installing
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Install In Reverse Order Of Removal. Note The Following:
-- Insert The New Bulb Into The Housing Without Touching The Bulb Glass With Bare Hands.

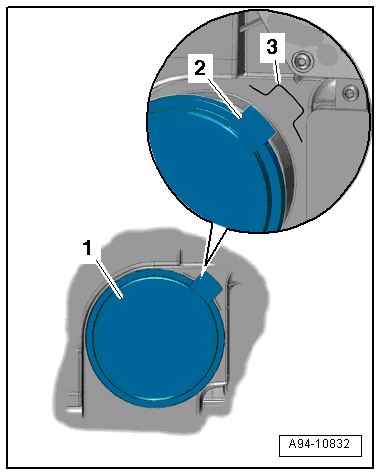

-- Close The Housing Cover -1-. At The Same Time, The Tab -2- Must Align With The Marking -3- On The Headlamp Housing.
-- Install The Headlamp Housing. Refer To HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, Through MY 2012 .
