Headlamp, Changing From LHD To RHD, Halogen Headlamps From 11/2008: Procedure

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Cover Foil Has A Molding (Marking Foil), Which Must Be Placed Along The Line Around The Headlamp Lens So That It Covers The Asymmetrical Area Of The Low Beam.

-- Clean The Headlamp Glasses And Dry Them.

DRIVER SIDE HEADLAMP:

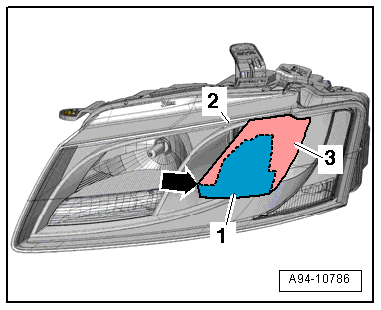

Fig 1: Cover Foil

Courtesy of AUDI OF AMERICA, LLC

-- Peel off the protective film from the protective backing.

-- Lay the cover foil flush along the line -2- going around the headlamp lens.

-- Affix the cover foil to the headlamp lens as illustrated.

-- Separate the marking foil -1- from the cover foil -3- at the perforation -arrow- and pull it off the headlamp lens.

FRONT PASSENGER SIDE HEADLAMP:

Fig 2: Cover Foil

Courtesy of AUDI OF AMERICA, LLC

-- Peel off the protective film from the protective backing.

-- Lay the cover foil flush along the line -2- going around the headlamp lens.

-- Affix the cover foil to the headlamp lens as illustrated.

-- Separate the marking foil -3- from the protective backing -1- at the perforation -arrow- and pull it off the headlamp glass.
