Fog Lamp, Removing And Installing, From My 2013: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

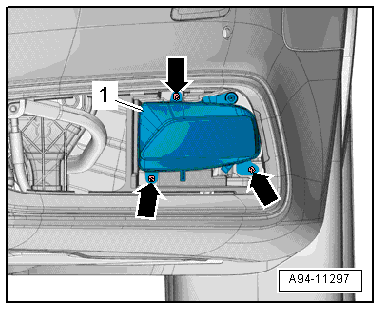

Fig 1: Identifying Fog Lamp
GWWA94-11297Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove The Air Intake Grille. Refer To BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 /AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS5 .

-- Remove the bolts -arrows-.

-- Remove the fog lamp -1- from the bumper cover.

-- Disconnect the connector.
