Left Luggage Compartment Lamp -W18- /Luggage Compartment Lamp -W3- /Ambient Lamp 1 In Rear Lid -W61-, Removing And Installing, SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

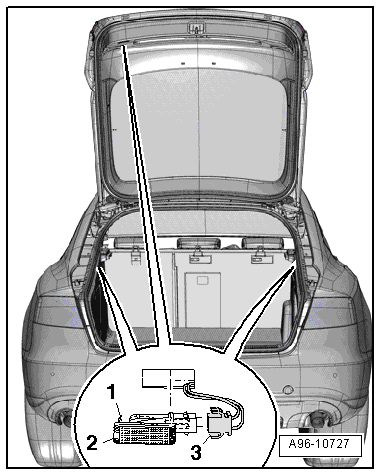

Fig 1: Luggage Compartment Lamp -W18- / -W3- / -W61-, 5-Door

Courtesy of AUDI OF AMERICA, LLC

-- Press in the retaining tab -1- with a flat-head screwdriver and pry the luggage compartment lamp -2- out.

-- Disconnect the connector -3-.

-- Carefully pry out the cover over the lamp -arrow-.

Fig 2: Prying Off Cover On Door Safety Lamp

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- on the rear side of the luggage compartment light from the socket -2-.

Fig 3: Door Safety Light/Entry Light Bulb

Courtesy of AUDI OF AMERICA, LLC
