Electronic Damping Control Module -J250-, Removing And Installing: Removing

The Electronic Damping Control Module -J250- is installed under the right front seat.

-- Move the right front seat all the way back and up.

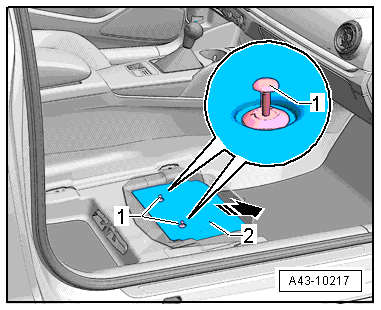

-- Remove the expanding rivets -1- and then remove the cover -2- in the direction of the -arrow- from its mount.

Courtesy of AUDI OF AMERICA, LLC

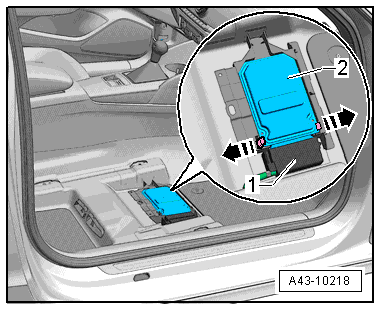

-- Unclip and remove the Electronic Damping Control Module -J250- -2- from the bracket in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
