Stop And Adjusting Buffer, Removing And Installing:

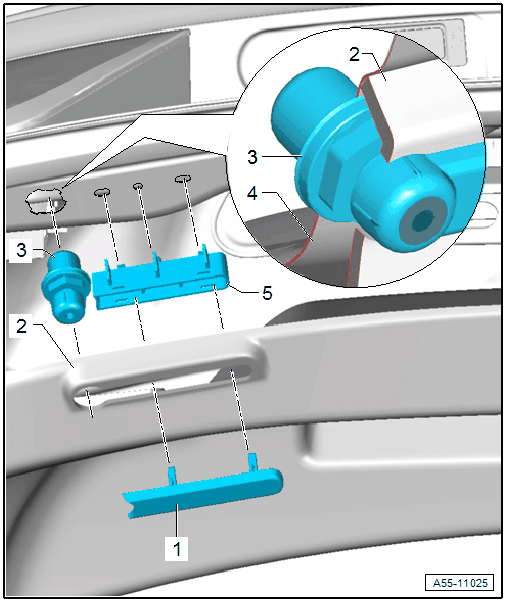

GWWA55-11025Courtesy of AUDI OF AMERICA, LLC
  1. Outer Stop Piece

    -- After installing the rear lid trim panel push in the inner stop piece

  2. Rear Lid Trim Panel

    -- For installing the rear lid trim panel the inner stop piece must be installed.

    -- After installing the rear lid trim panel push in the outer stop piece until it engages.

  3. Adjusting Buffer
    • Install after adjusting the rear lid via the striker. Refer to HEIGHT ADJUSTMENT AT STRIKER .

      -- Adjust the buffer with hex socket wrench 5 mm.

      -- With the rear lid closed a piece of paper must be able to just fit between the adjusting buffer and the body surface.

  4. Rear Lid

    -- Adjust the front side flush via the rear lid hinge. Refer to SIDE, LENGTH AND HEIGHT ADJUSTMENT AT HINGE .

    -- Adjust the rear side flush via the striker.

  5. Inner Stop Piece

    -- Push in the rear lid before installing the rear lid trim.
