Valve Shaft Seals, Removing And Installing, Cylinder Removed: Procedure
-- Remove the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
-- Mark the allocation of the roller rocker lever and the hydraulic adjusting elements so they can be installed again.
-- If necessary, remove the roller rocker levers with the hydraulic adjusting elements and place them on a clean surface.
-- Remove the cylinder head. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
-- The exhaust manifold and the intake manifold must be removed from the removed cylinder head.
-- Insert the :VAS6419 in the :VAS6095 .
-- Tension the cylinder head on the cylinder head tensioning device, as illustrated.
-- Connect the cylinder head tensioning device to the compressed air.
-- Slide the air cushion with the lever -arrow- under the combustion chamber onto the valve stem seal that will be removed.
-- Let enough compressed air flow into the air cushion until it contacts the valve plate.
Cylinder 1, 3 and 4

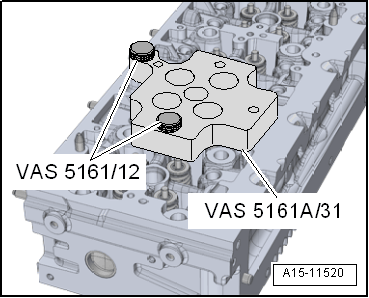

-- Place the :VAS5161A/31 on the cylinder head.
- The label -A- points to the turbocharger side.
- The label -E- point to the intake manifold side.
-- Fasten the guide plate with the :VAS5161/12 by hand.
- The knurled bolts position, as shown in the illustration
Cylinder 2

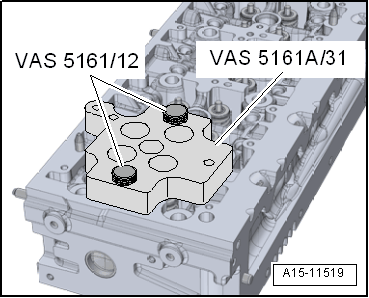

-- Place the :VAS5161A/31 on the cylinder head.
- The label -A- points to the turbocharger side.
- The label -E- point to the intake manifold side.
-- Fasten the guide plate with the :VAS5161/12 by hand.
- The knurled bolts position, as shown in the illustration
Continued for All Cylinders
-- Insert the :VAS5161/3A in the guide plate and loosen the stuck valve retainers with a plastic mallet.

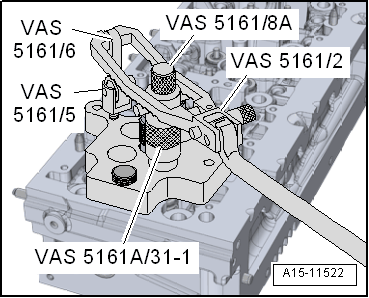

-- Install the :VAS5161/6 with the :VAS5161/5 in the guide plate.
-- Insert the :VAS5161/8 into the guide plate with the :VAS5161A/31-1 .
-- Engage the :VAS5161/2 at the engaging device and press the installation cartridge downward.
-- At the same time, rotate the cartridge knurled screw right until points engage in valve retainers.
-- Move the knurled wheel left and right slightly. This presses the valve retainers apart and captures them in the cartridge.
-- Release the pressure fork.
-- Remove the installation cartridge with the sleeve.
-- Remove the valve spring and the valve spring plate.
-- Remove the valve stem seal with the :3364 .
-- Place the plastic sleeve -A- that is included with the new valve stem seals -B- on the valve stem.
-- Lightly oil the valve stem seal.
-- Slide the valve shaft seal onto the plastic sleeve.
-- Carefully press the valve stem seal onto the valve guide with the :3365 .
-- Remove plastic sleeve.
If the valve retainers were removed from the installation cartridge, they must then be inserted into the :VAS5161/18 .
- The large diameter of the valve retainers point upward.
-- Press the installation cartridge onto the insertion device for the valve retainers from above and take up valve retainers.
-- Insert valve spring and valve spring plate.
-- Insert the cartridge into the :VAS5161A/31 .
-- Press the pressure fork down and pull the knurled screw up while turning left and right. This inserts the valve retainers.
-- Release the pressure fork with the knurled screw still raised.
-- Repeat the procedure on each valve.
