Engine And Transmission, Separating, Vehicles With Manual Transmission 02S: Procedure
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Engine/transmission assembly removed and mounted on Engine Support:T10497 .
-- Removing starter. Refer to STARTER .
-- Remove bolts -arrows- and transmission support -A- from the transmission.

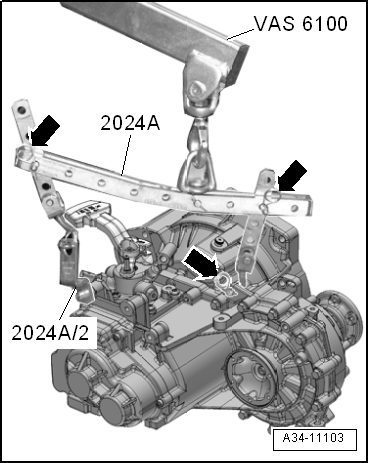

-- Secure the transmission on the :VAS6100 using the :2024A , as shown in the illustration.
NOTE:
To be aligned to the center of gravity of the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.
WARNING:
Loose engine support bridge components could cause an accident.
- Secure the mounting hooks and pins on the engine support bridge using securing pins -arrows-.

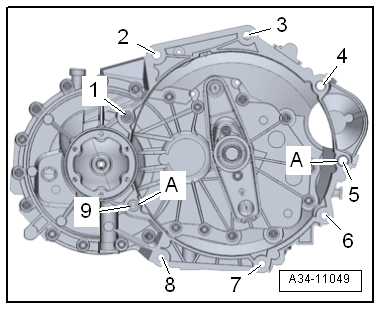

-- Remove the bolts -1, 2, 3, 6, 7, 8 and 9- that connect the transmission to the engine.
NOTE:
Ignore item -4, 5 and A-.
-- Remove the transmission from the engine.
