ENGINE, SECURING ON Engine And Transmission Holder:VAS6095: Procedure
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Separate the transmission from the engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .

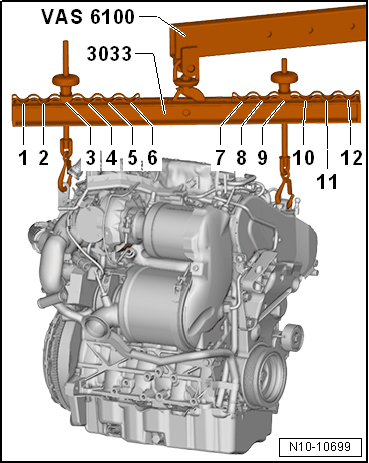

-- Engage :3033 on engine and on :VAS6100 as shown in illustration.
- Transmission side: Position 3.
- Belt pulley side: Position 9.
-- Lower the engine using the :VAS6100 from the :T10497 .
-- Fasten the engine to :VAS6095 using the :VW540 .
