Engine Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Risk of damaging the fuel return line due to improper handling of the engine cover.
Leaks in the fuel system.
- When removing and installing the engine cover pay attention to the surrounding components.

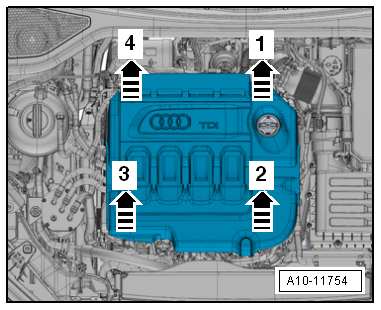

-- Carefully remove the engine cover from the bolts in the sequence - 1-2-3-4- and remove the engine cover straight upward.
