SUBFRAME Mount, Checking Adjustment: Procedure
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

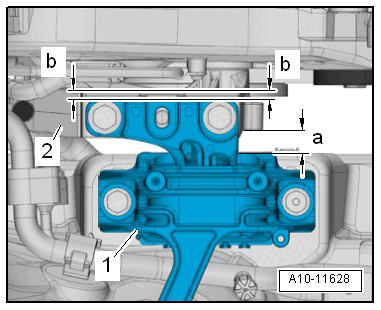

The following dimensions must be attained:
- The clearance between the engine support -2- and the engine mount -1- must be at least -a- = 10 mm.
- The casting edge on the engine support must be parallel to the support arm.
- Dimension -b- = Dimension -b-.
- Distance of at least -a- = 10 mm can also be checked with corresponding round stock.
-- If the distance measured is too small or too large, adjust the subframe. Refer to SUBFRAME MOUNT, ADJUSTING .
