Overview - Assembly Mounts: Notes

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

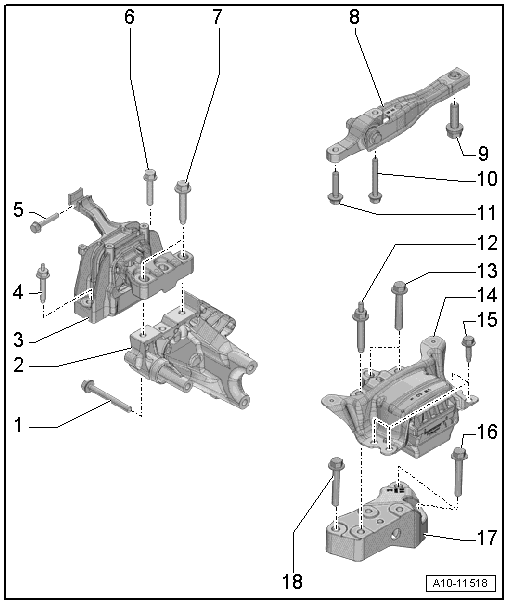

Fig 1: Exploded View Of Assembly Mounts

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening sequence. Refer to ENGINE SUPPORT - TIGHTENING SPECIFICATION AND SEQUENCE .
- Always replace after removing
Engine Support
- Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Engine Mount
- With support arm
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- 40 Nm + 90° turn
- Always replace after removing
Bolt
- 20 Nm + 90° turn
- Always replace after removing
Bolt
- 40 Nm + 90° turn
- Always replace after removing
Bolt
- 60 Nm + 90° turn
- Always replace after removing
Pendulum Support
- Different versions. For the correct allocation. Refer to the Parts information
- Removing and installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
Bolt
- Tightening specification and sequence. Refer to INSTALL THE PENDULUM SUPPORT
- Always replace after removing
Bolt
- Tightening specification and sequence. Refer to INSTALL THE PENDULUM SUPPORT
- Always replace after removing
Bolts
- Tightening specification and sequence. Refer to INSTALL THE PENDULUM SUPPORT
- Always replace after removing
Bolt
- 60 Nm + 90° turn
- Always replace after removing
Bolt
- 60 Nm + 90° turn
- Always replace after removing
Transmission Mount
- With support arm
- Removing and installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- 50 Nm +90° turn
- Always replace after removing
Bolt
- For the tightening specification. Refer to SUBFRAME MOUNT [For transmission(s) 0D9] .
Gearbox Support
- For vehicles with manual transmission
Bolt
- For the tightening specification. Refer to SUBFRAME MOUNT [For transmission(s) 0D9] .
