Engine Support, Removing And Installing: Removing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine bracket. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
-- Remove the upper toothed belt guard. Refer to UPPER TOOTHED BELT GUARD, REMOVING AND INSTALLING .
-- Lift or lower the engine using the :10-222A/11 until the engine support bolt is accessible.

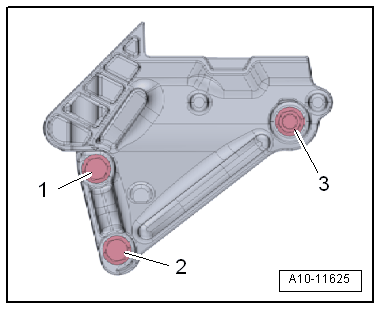

-- Remove the bolts -1, 2 and 3- and engine support.
- The bolt -2- can only be removed after the engine support is removed.
