Access/Start System Antenna In Rear Bumper -R136-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

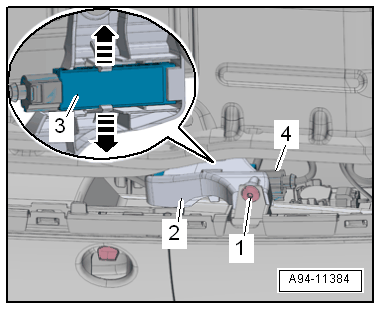

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Reach behind the bumper cover and release the retainers in direction of -arrows-.

-- Remove the antenna -3- from the mount -2-.

-- Disconnect the connector -4-.
