Access/Start System Antenna In Luggage Compartment -R137-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear seat bench. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

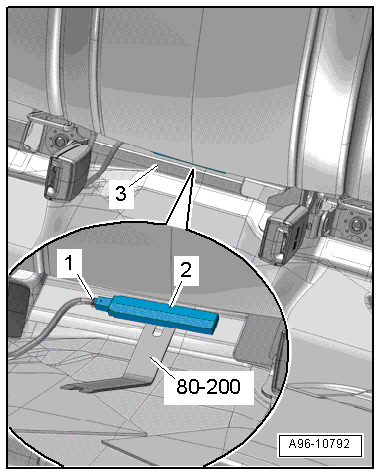

-- Fold back the carpet -3-.
-- Disconnect the connector -1-.
-- Pry out the antenna -2- from the body using the :80-200 .
NOTE:
If the antenna cannot be removed as described, the trim must be removed. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
