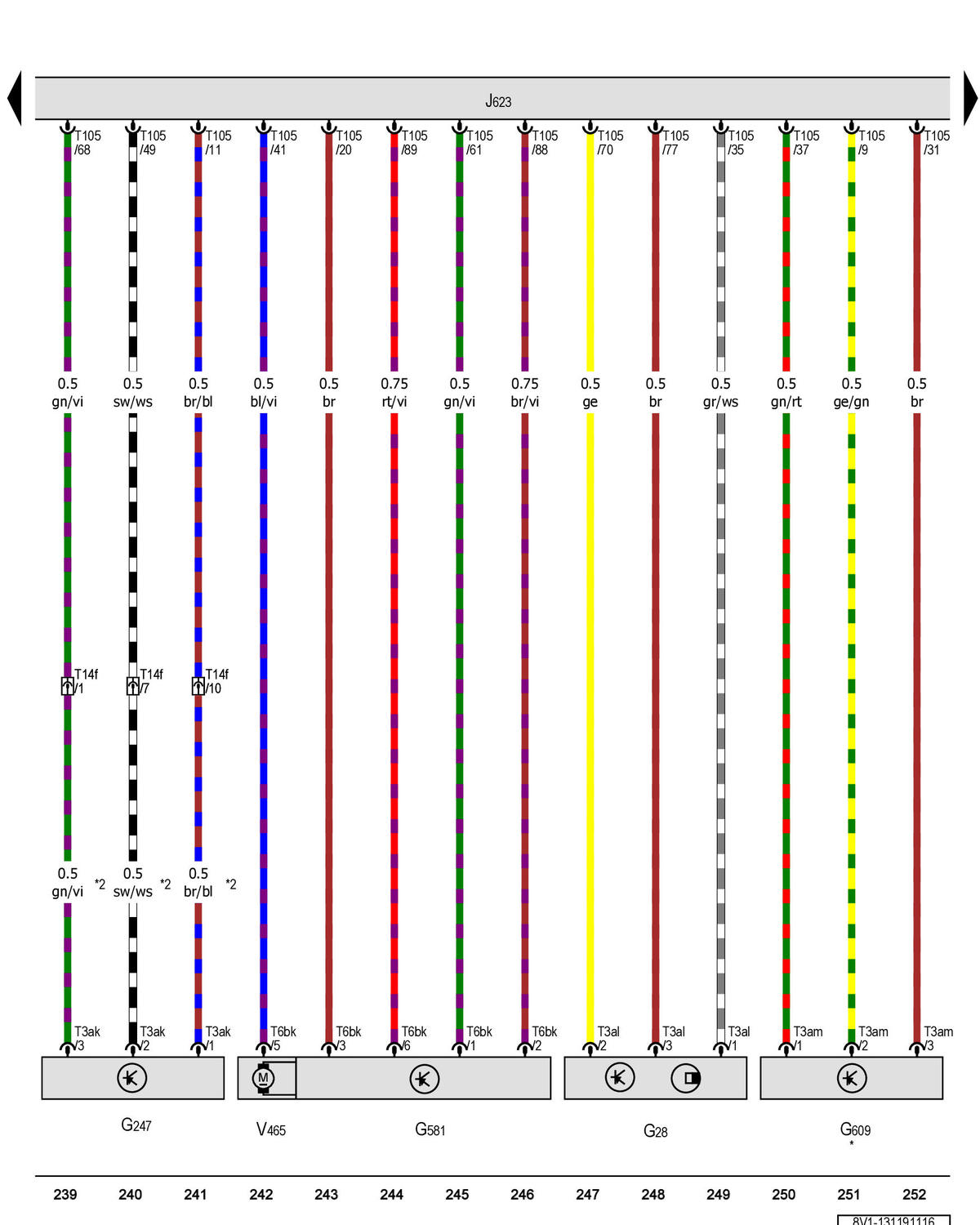

Engine Speed Sensor, Fuel Pressure Sensor, Secondary Air Injection Sensor 1, Engine Control Module, Charge Air Pressure Actuator: Notes

GWW8V1-131191116
