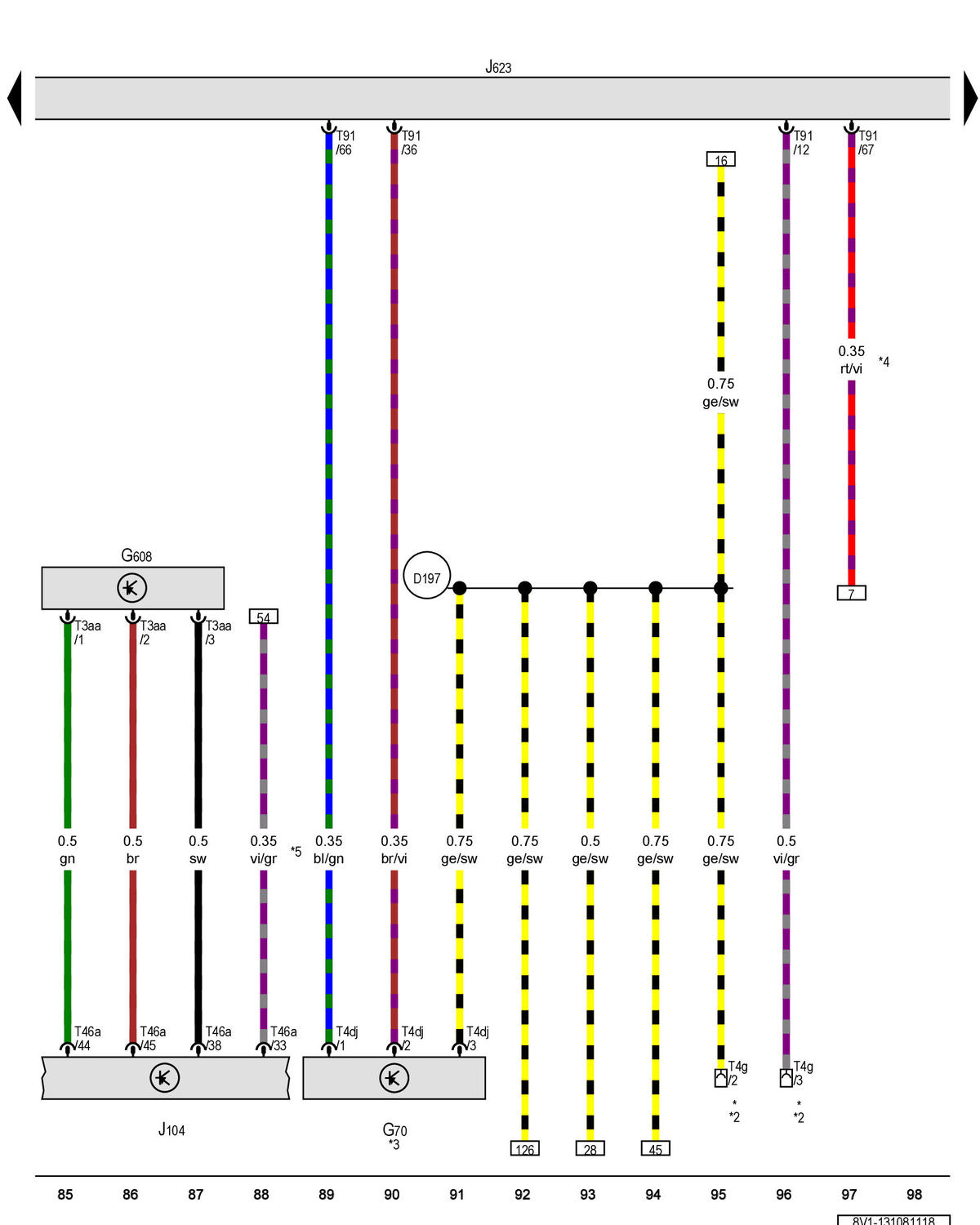

Vacuum Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G70

Mass Airflow Sensor Type:BT, Slpdok:, Aim:BTG70

G608

Vacuum Sensor

J104

ABS Control Module Type:BT, Slpdok:, Aim:BTJ104

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T3aa

3-Pin Connector, Black

T4dj

4-Pin Connector, Black

T4g

4-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT4g

T46a

46-Pin Connector, Black

T91

91-Pin Connector, Black

D197

Connection 5 (87A) (in Engine/Motor Compartment Wiring Harness)

*

Radiator Fan Connection

*2

Refer to Applicable Radiator Fan Wiring Diagram

*3

Omitted as a Running Change

*4

Refer to Applicable Wiring Diagram for Battery in Engine/Motor Compartment

*5

For Vehicles with a Manual Transmission
