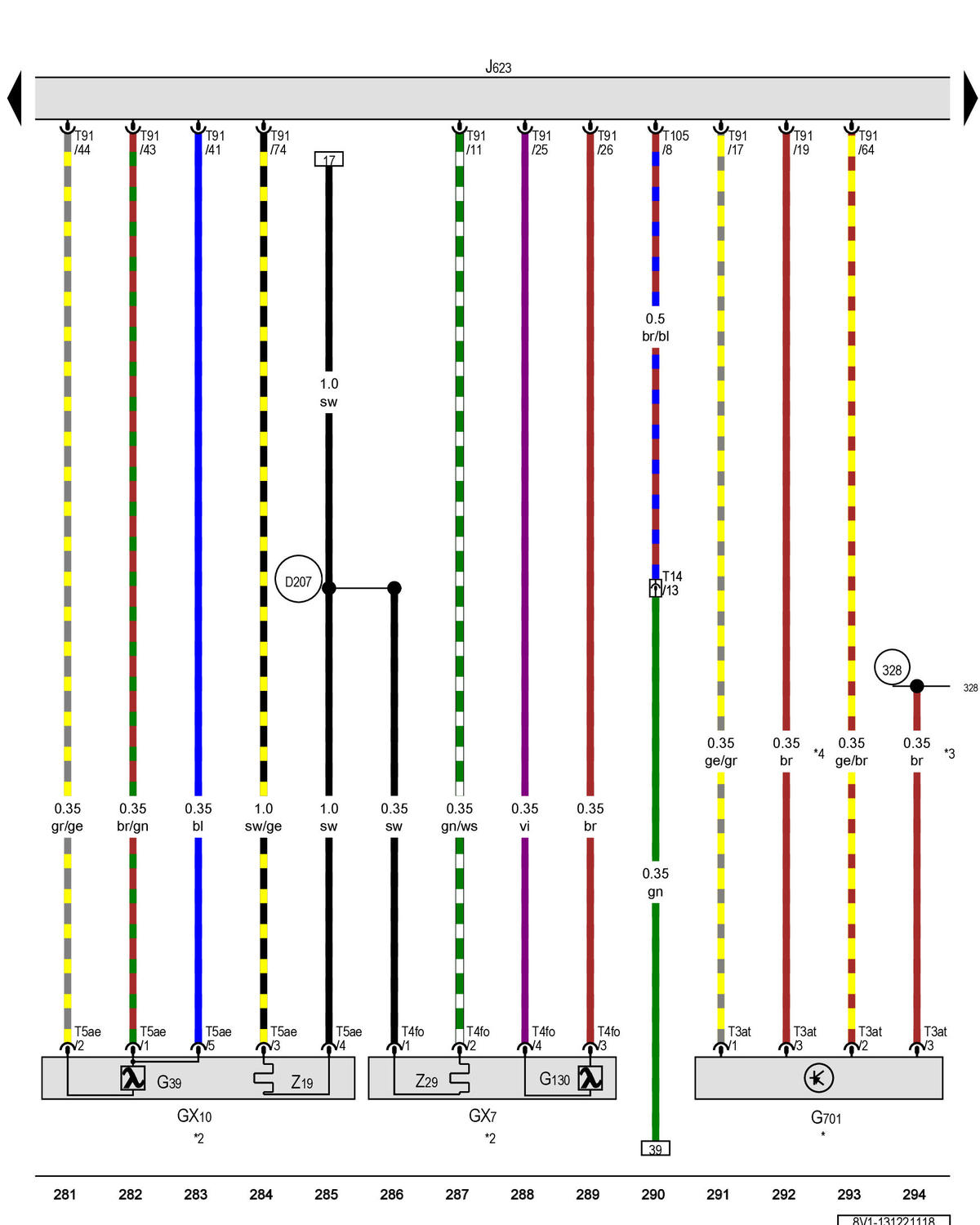

Oxygen Sensor 1 After Catalytic Converter, Oxygen Sensor 1 Before Catalytic Converter, Transmission Neutral Position Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

GX7

Oxygen Sensor 1 After Catalytic Converter

GX10

Oxygen Sensor 1 Before Catalytic Converter

G39

Heated Oxygen Sensor Type:BT, Slpdok:, Aim:BTG39

G130

Oxygen Sensor After Catalytic Converter Type:BT, Slpdok:, Aim:BTG130

G701

Transmission Neutral Position Sensor

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T3at

3-Pin Connector, Black

T4fo

4-Pin Connector, Black

T5ae

5-Pin Connector, Black

T14

14-Pin Connector, Gray Type:BT, Slpdok:, Aim:BTT14

T91

91-Pin Connector, Black

T105

105-Pin Connector, Black

Z19

Oxygen Sensor Heater Type:BT, Slpdok:, Aim:BTZ19

Z29

Heater for Oxygen Sensor 1 After Catalytic Converter Type:BT, Slpdok:, Aim:BTZ29

328

Sensor Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

D207

Connection 7 (87A) (in Engine/Motor Compartment Wiring Harness)

*

Depending on Equipment

*2

Pre-Wired Component

*3

Omitted as a Running Change

*4

Running Change
