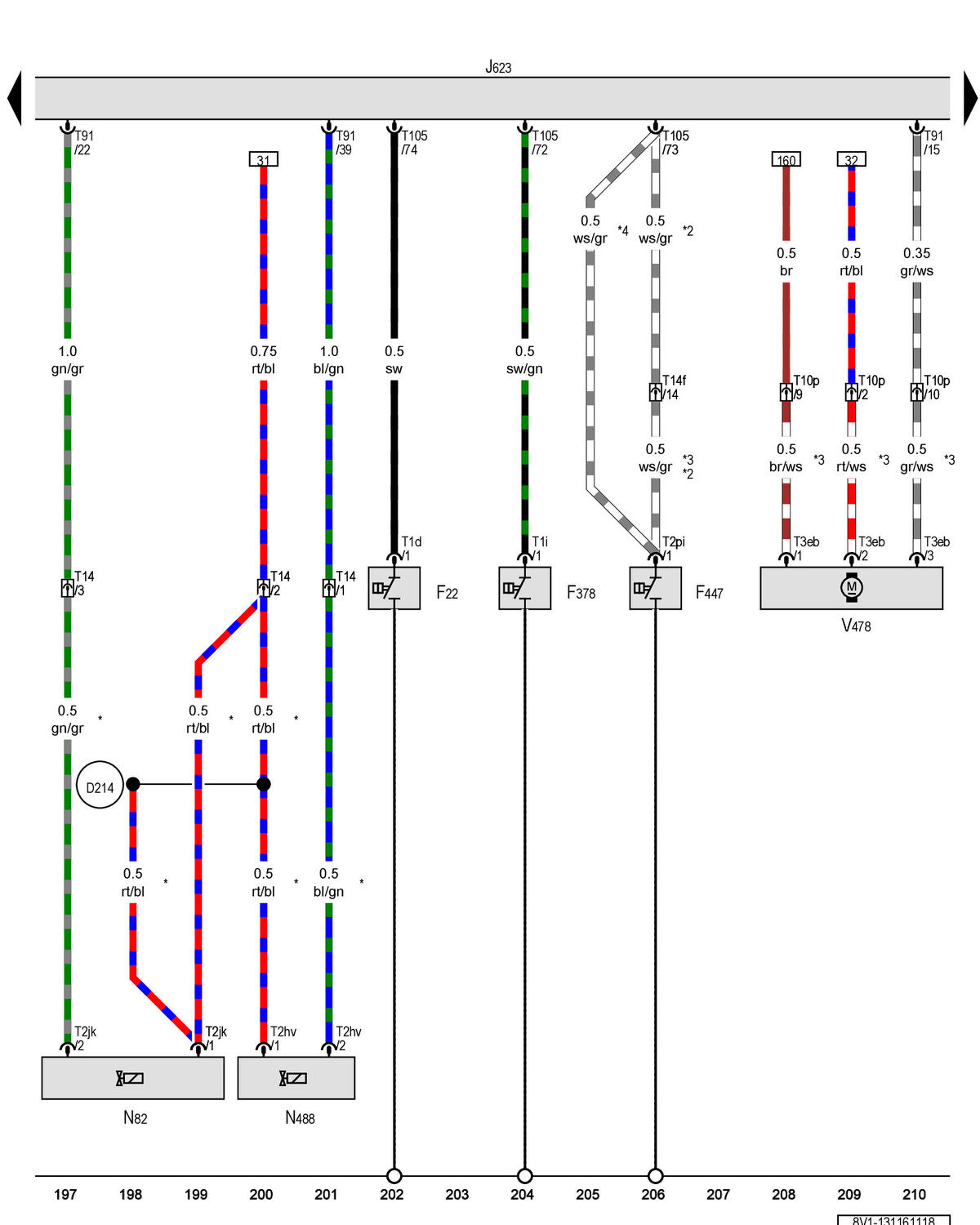

Oil Pressure Switch, Reduced Oil Pressure Switch, Engine/Motor Control Module, Coolant Shut-Off Valve, Transmission Coolant Valve

Courtesy of AUDI OF AMERICA, LLC

F22

Oil Pressure Switch Type:BT, Slpdok:, Aim:BTF22

F378

Reduced Oil Pressure Switch Type:BT, Slpdok:, Aim:BTF378

F447

Oil Pressure Switch, Level 3 Type:BT, Slpdok:, Aim:BTF447

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

N82

Coolant Shut-Off Valve Type:BT, Slpdok:, Aim:BTN82

N488

Transmission Coolant Valve Type:BT, Slpdok:, Aim:BTN488

T1d

1-Pin Connector

T1i

1-Pin Connector, Black

T2hv

2-Pin Connector, Black

T2jk

2-Pin Connector, Black

T2pi

2-Pin Connector, Black

T3eb

3-Pin Connector, Black

T10p

10-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT10p

T14

14-Pin Connector, Gray Type:BT, Slpdok:, Aim:BTT14

T14f

14-Pin Connector, In the Engine/Motor Compartment, Black Type:BT, Slpdok:, Aim:BTT14f

T91

91-Pin Connector, Black

T105

105-Pin Connector, Black

V478

Transmission Fluid Cooling Pump

D214

Connection 8 (87A) (in Engine/Motor Compartment Wiring Harness)

*

Depending on Equipment

*2

Omitted as a Running Change

*3

The Color of the Wires Depends on Vehicle Equipment

*4

Running Change
