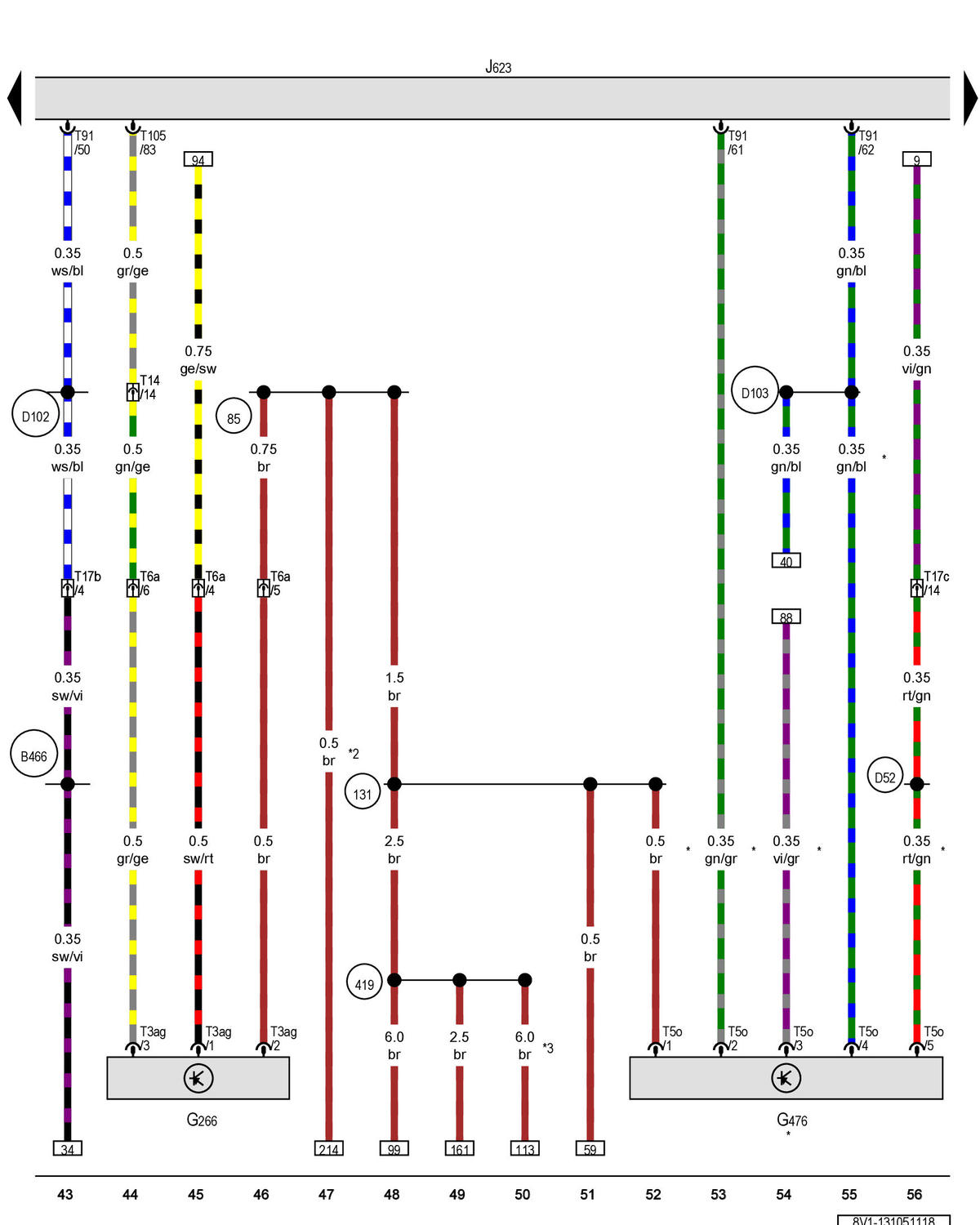

Oil Level Thermal Sensor, Clutch Position Sensor, Engine/Motor Control Module
G266
Oil Level Thermal Sensor Type:BT, Slpdok:, Aim:BTG266
G476
Clutch Position Sensor Type:BT, Slpdok:, Aim:BTG476
J623
Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623
T3ag
3-Pin Connector, Black
T5o
5-Pin Connector, Black
T6a
6-Pin Connector, Black
T14
14-Pin Connector, Gray Type:BT, Slpdok:, Aim:BTT14
T17b
17-Pin Connector, On the Lower Left A-Pillar, Brown Type:BT, Slpdok:, Aim:BTT17b
T17c
17-Pin Connector, On the Lower Left A-Pillar, Red Type:BT, Slpdok:, Aim:BTT17c
T91
91-Pin Connector, Black
T105
105-Pin Connector, Black
85
Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)
131
Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)
419
Ground Connection 11 (in Engine/Motor Compartment Wiring Harness)
B466
Connection 2 (in Main Wiring Harness)
D52
Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)
D102
Connection 2 (in Engine/Motor Compartment Wiring Harness)
D103
Connection 3 (in Engine/Motor Compartment Wiring Harness)
*
For Vehicles with a Manual Transmission
*2
For RHD Vehicles
*3
Diameter Depends on Equipment
