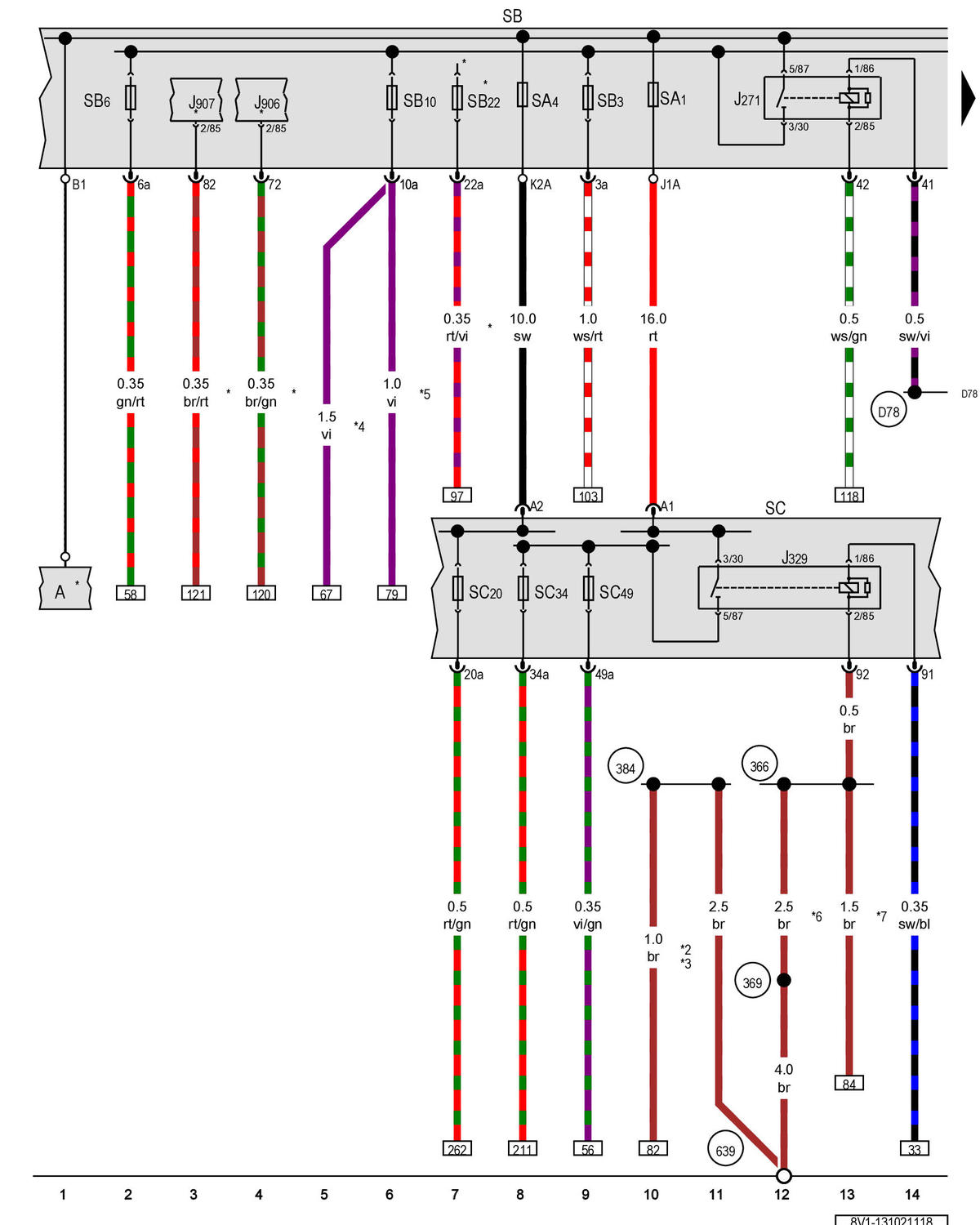

MOTRONIC Engine Control Module Power Supply Relay, Terminal 15 Power Supply Relay, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

Battery

J271

Motronic Engine Control Module Power Supply Relay Type:BT, Slpdok:, Aim:BTJ271

J329

Terminal 15 Power Supply Relay Type:BT, Slpdok:, Aim:BTJ329

J906

Starter Relay 1 Type:BT, Slpdok:, Aim:BTJ906

J907

Starter Relay 2 Type:BT, Slpdok:, Aim:BTJ907

SA1

Fuse 1 (On Fuse Panel A) Type:BT, Slpdok:, Aim:BTSA-

SA4

Fuse 4 (On Fuse Panel A) Type:BT, Slpdok:, Aim:BTSA-

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SB3

Fuse 3 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB6

Fuse 6 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB10

Fuse 10 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB22

Fuse 22 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

Fuse Panel C Type:BT, Slpdok:, Aim:BTSC-

SC20

Fuse 20 (On Fuse Panel C) Type:BT, Slpdok:, Aim:BTSC-

SC34

Fuse 34 (On Fuse Panel C) Type:BT, Slpdok:, Aim:BTSC-

SC49

Fuse 49 (On Fuse Panel C) Type:BT, Slpdok:, Aim:BTSC-

366

Ground Connection 1 (in Main Wiring Harness)

369

Ground Connection 4 (in Main Wiring Harness)

384

Ground Connection 19 (in Main Wiring Harness)

639

Ground Connection on Left A-Pillar Type:VB, Slpdok:, Aim:VB639

D78

Positive Connection 1 (30a) (in Engine/Motor Compartment Wiring Harness)

Refer to Applicable Wiring Diagram for Battery in Engine/Motor Compartment

For Vehicles with a Parking Heater

For Vehicles with 4-Door Equipment

For FWD vehicles

For AWD Vehicles

For LHD Vehicles

For RHD Vehicles
