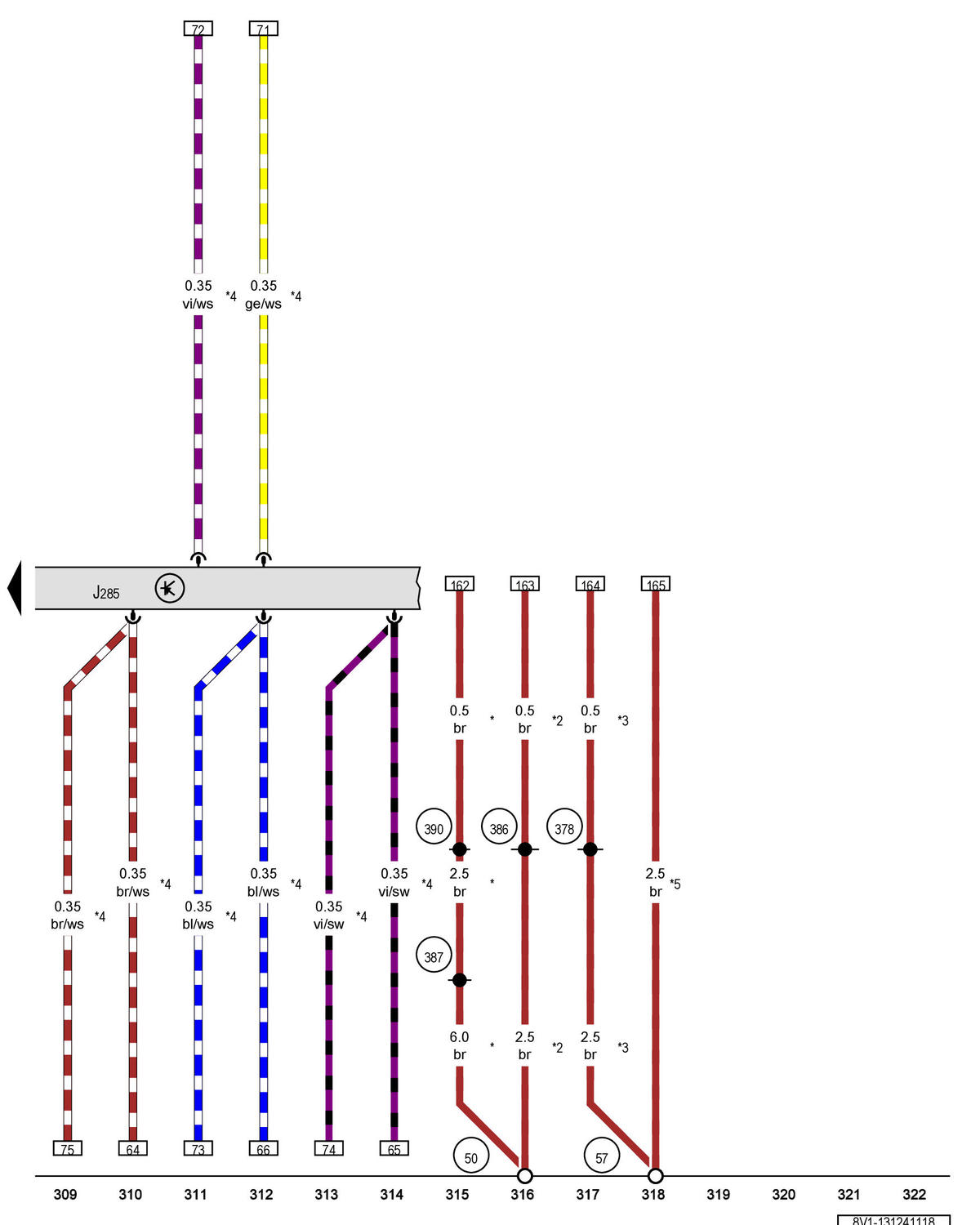

Instrument Cluster Control Module

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module Type:BT, Slpdok:, Aim:BTJ285

50

Ground Connection in Luggage Compartment, Left Type:VB, Slpdok:, Aim:VB50

57

Ground Connection on Left Rear Pillar Type:VB, Slpdok:, Aim:VB57

378

Ground Connection 13 (in Main Wiring Harness)

386

Ground Connection 21 (in Main Wiring Harness)

387

Ground Connection 22 (in Main Wiring Harness)

390

Ground Connection 25 (in Main Wiring Harness)

*

For Convertible

*2

For Vehicles with 4-Door Equipment

*3

For Vehicles with 5-Door Equipment

*4

Refer to Applicable Fuel System Wiring Diagram

*5

For Vehicles with 3-Door Equipment
