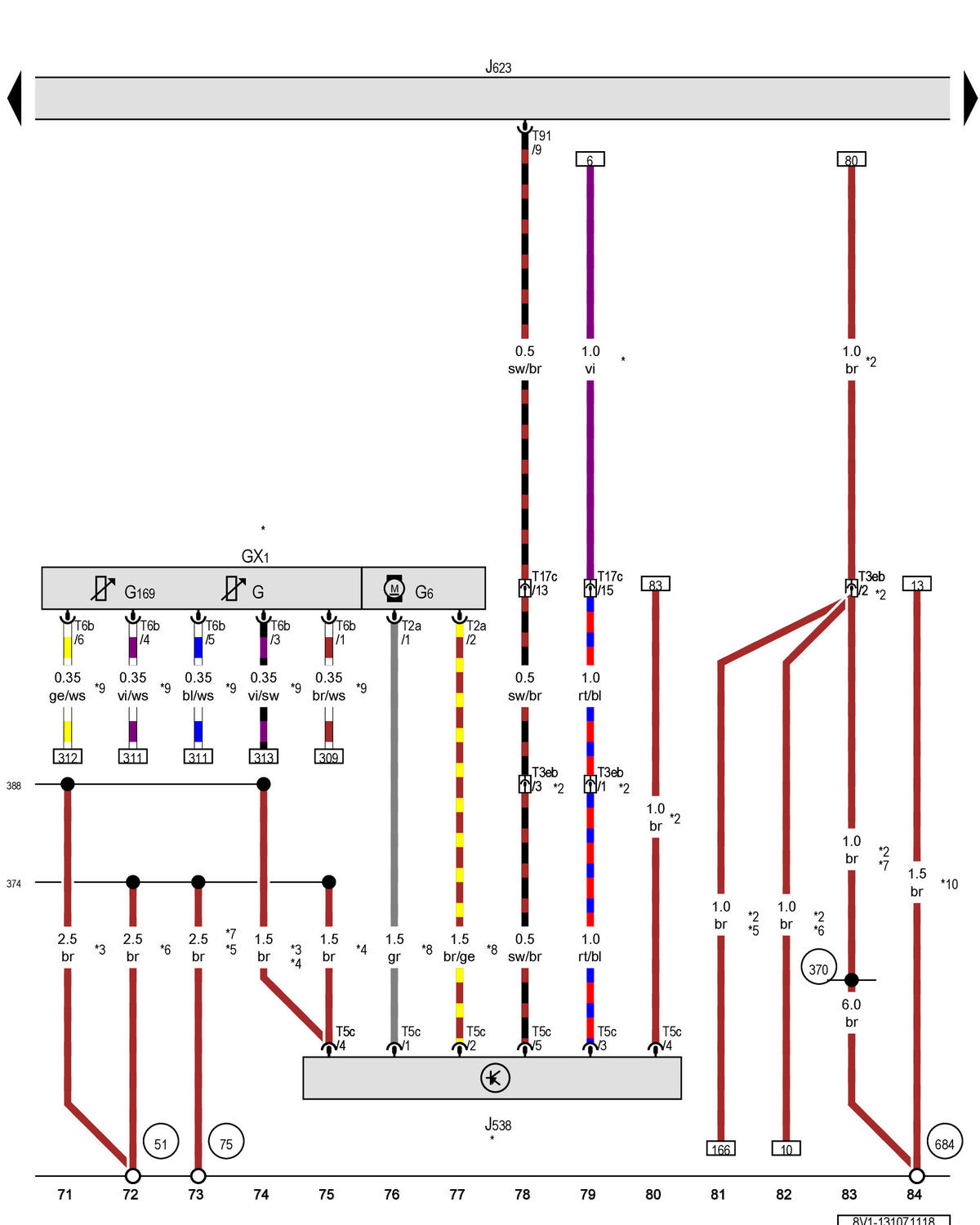

Fuel Level Sensor, Fuel Delivery Unit, Transfer Fuel Pump, Engine/Motor Control Module
G
Fuel Level Sensor
GX1
Fuel Delivery Unit
G6
Transfer Fuel Pump
G169
Fuel Level Sensor 2
J538
Fuel Pump Control Module Type:BT, Slpdok:, Aim:BTJ538
J623
Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623
T2a
2-Pin Connector, Black
T3eb
3-Pin Connector, Black
T5c
5-Pin Connector, Black
T6b
6-Pin Connector, Black
T17c
17-Pin Connector, On the Lower Left A-Pillar, Red Type:BT, Slpdok:, Aim:BTT17c
T91
91-Pin Connector, Black
51
Ground Connection in Luggage Compartment, Right Type:VB, Slpdok:, Aim:VB51
75
Ground Connection on Right Rear Pillar Type:VB, Slpdok:, Aim:VB75
370
Ground Connection 5 (in Main Wiring Harness)
374
Ground Connection 9 (in Main Wiring Harness)
388
Ground Connection 23 (in Main Wiring Harness)
684
Ground Connection on Left Front Side Member Type:VB, Slpdok:, Aim:VB684
*
For AWD Vehicles
*2
For Vehicles with a Parking Heater
*3
For Convertible
*4
For Vehicles Without Parking Heater
*5
For Vehicles with 3-Door Equipment
*6
For Vehicles with 4-Door Equipment
*7
For Vehicles with 5-Door Equipment
*8
The Color of the Wires Depends on Vehicle Equipment
*9
Refer to Applicable Fuel System Wiring Diagram
*10
For RHD Vehicles
