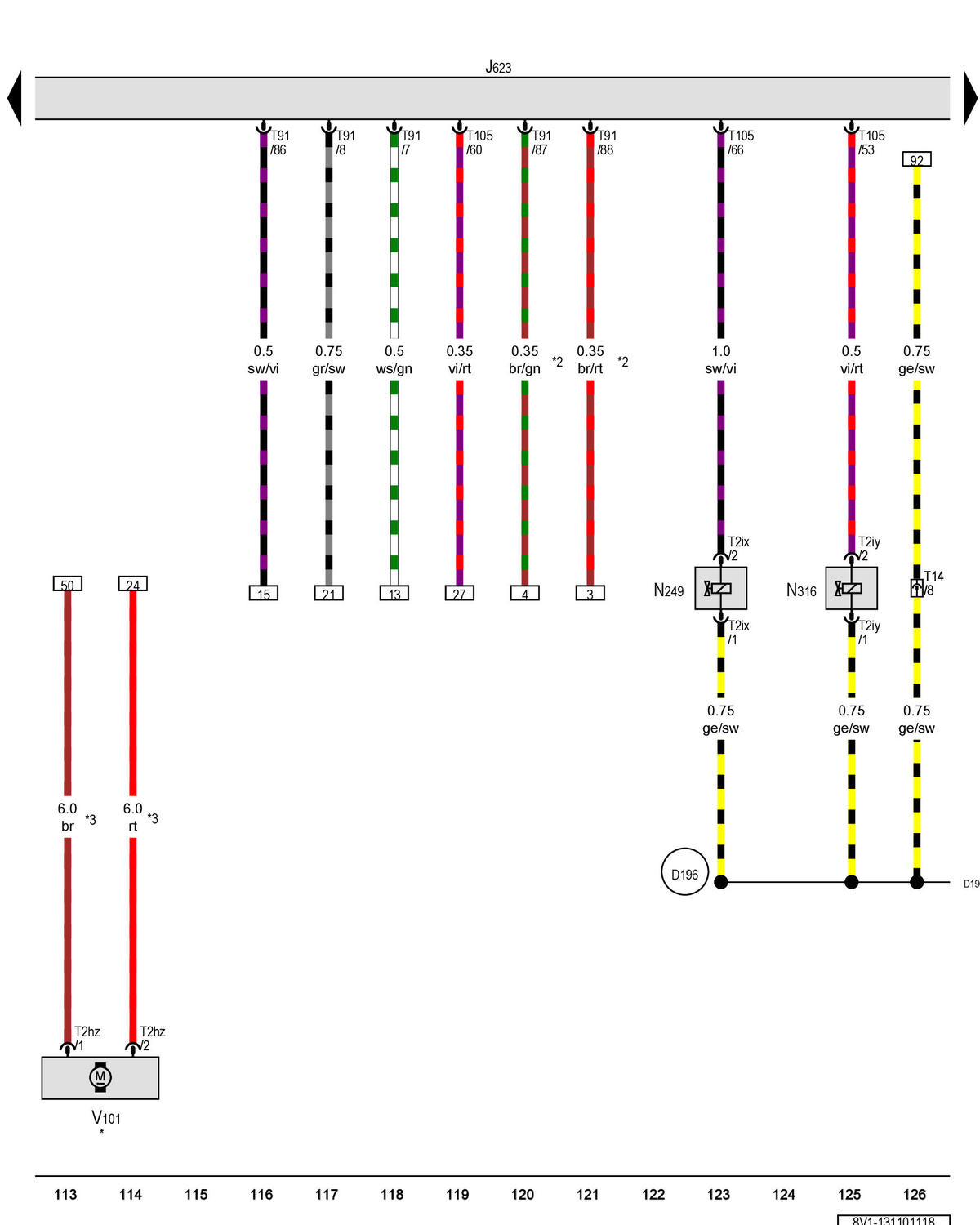

Engine/Motor Control Module, Turbocharger RECIRCULATION Valve, Intake Manifold Runner Control Valve, Secondary Air Injection Pump Motor

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

N249

Turbocharger Recirculation Valve Type:BT, Slpdok:, Aim:BTN249

N316

Intake Manifold Runner Control Valve Type:BT, Slpdok:, Aim:BTN316

T2hz

2-Pin Connector, Black

T2ix

2-Pin Connector, Black

T2iy

2-Pin Connector, Black

T14

14-Pin Connector, Gray Type:BT, Slpdok:, Aim:BTT14

T91

91-Pin Connector, Black

T105

105-Pin Connector, Black

V101

Secondary Air Injection Pump Motor

D196

Connection 87A (in Engine Pre-Wiring Harness) 2

*

For Vehicles with US Equipment

*2

Refer to Applicable Wiring Diagram for Battery in Engine/Motor Compartment

*3

Diameter Depends on Equipment
