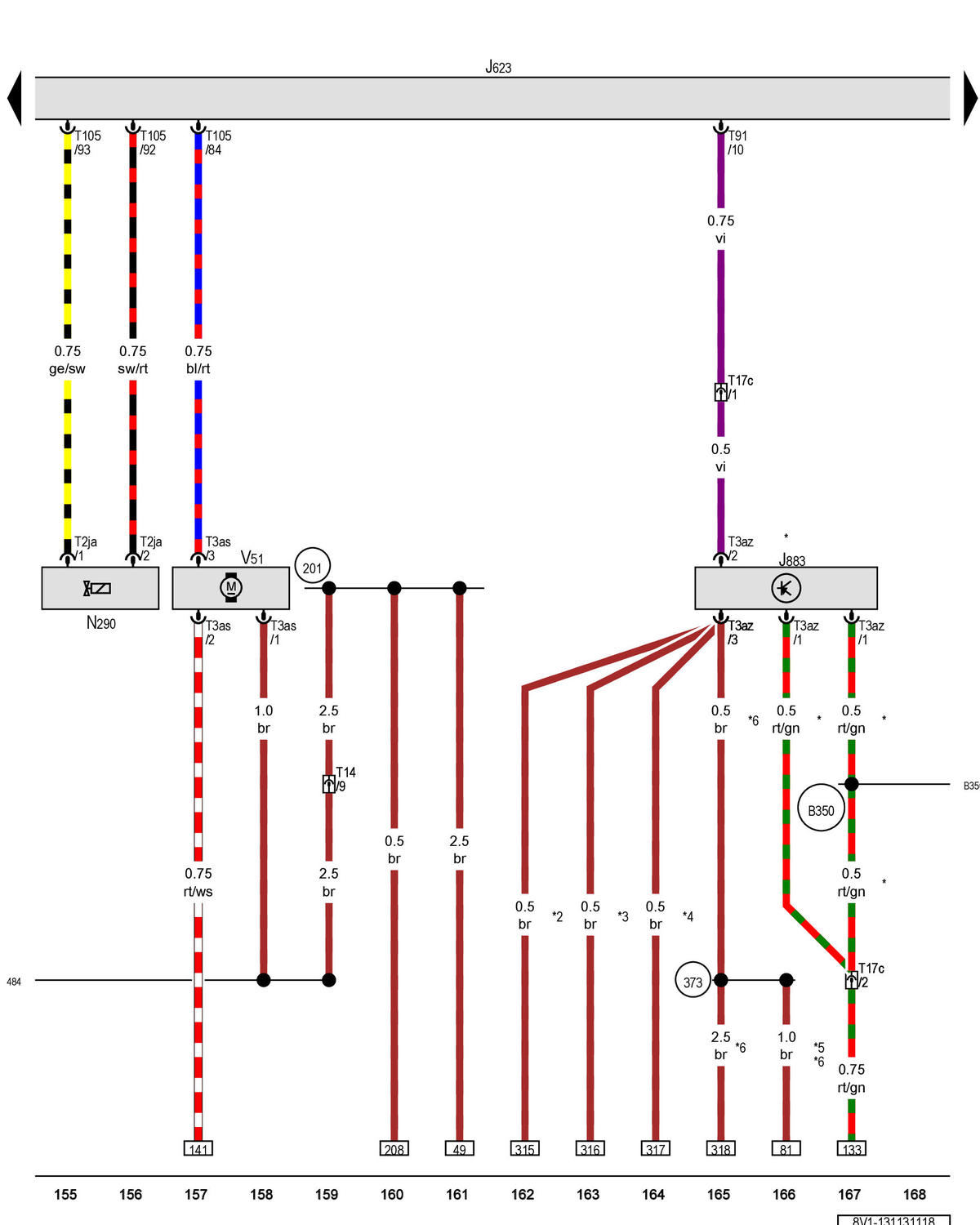

Engine/Motor Control Module, Fuel Metering Valve, After-Run Coolant Pump

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

J883

Exhaust Door Control Unit

N290

Fuel Metering Valve Type:BT, Slpdok:, Aim:BTN290

T2ja

2-Pin Connector, Black

T3as

3-Pin Connector, Black

T3az

3-Pin Connector, Black

T14

14-Pin Connector, Gray Type:BT, Slpdok:, Aim:BTT14

T17c

17-Pin Connector, On the Lower Left A-Pillar, Red Type:BT, Slpdok:, Aim:BTT17c

T91

91-Pin Connector, Black

T105

105-Pin Connector, Black

V51

After-Run Coolant Pump Type:BT, Slpdok:, Aim:BTV51

201

Ground Connection 5 (in Engine/Motor Compartment Wiring Harness)

373

Ground Connection 8 (in Main Wiring Harness)

484

Ignition Coil Ground Connection 2 (in Engine Pre-Wiring Harness)

D350

Positive Connection 1 (87a) (in Main Wiring Harness)

*

Depending on Equipment

*2

For Convertible

*3

For Vehicles with 4-Door Equipment

*4

For Vehicles with 5-Door Equipment

*5

For Vehicles with a Parking Heater

*6

For Vehicles with 3-Door Equipment
