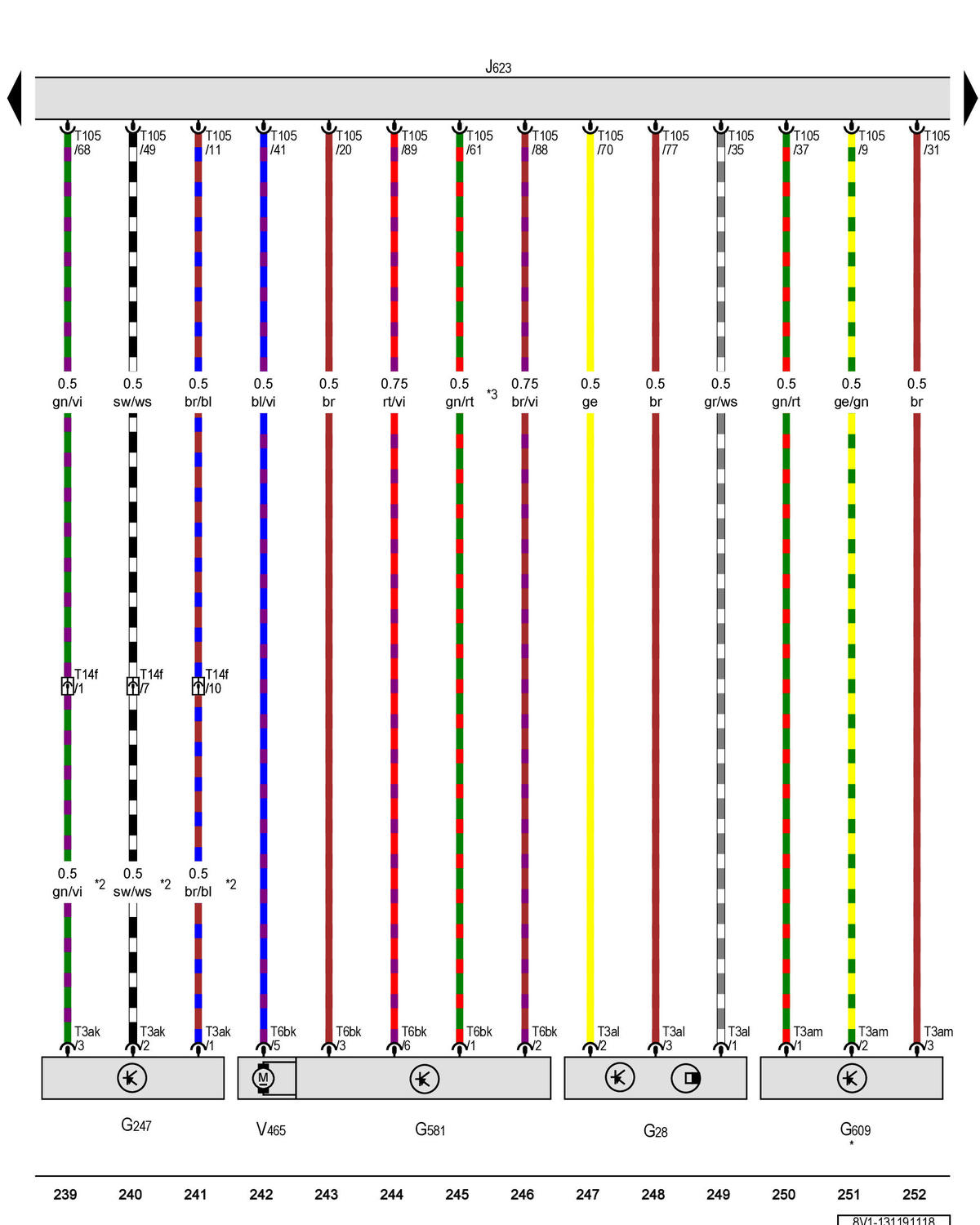

Engine Speed Sensor, Fuel Pressure Sensor, Secondary Air Injection Sensor 1, Engine/Motor Control Module, Charge Air Pressure Actuator

Courtesy of AUDI OF AMERICA, LLC

G28

Engine Speed Sensor Type:BT, Slpdok:, Aim:BTG28

G247

Fuel Pressure Sensor Type:BT, Slpdok:, Aim:BTG247

G581

Charge Air Pressure Actuator Position Sensor Type:BT, Slpdok:, Aim:BTG581

G609

Secondary Air Injection Sensor 1

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T3ak

3-Pin Connector, Black

T3al

3-Pin Connector, Black

T3am

3-Pin Connector, Black

T6bk

6-Pin Connector, Gray

T14f

14-Pin Connector, In the Engine/Motor Compartment, Black Type:BT, Slpdok:, Aim:BTT14f

T105

105-Pin Connector, Black

V465

Charge Air Pressure Actuator Type:BT, Slpdok:, Aim:BTV465

*

For Vehicles with US Equipment

*2

The Color of the Wires Depends on Vehicle Equipment

*3

Different Wire Color Possible
